Flow Through System Pump

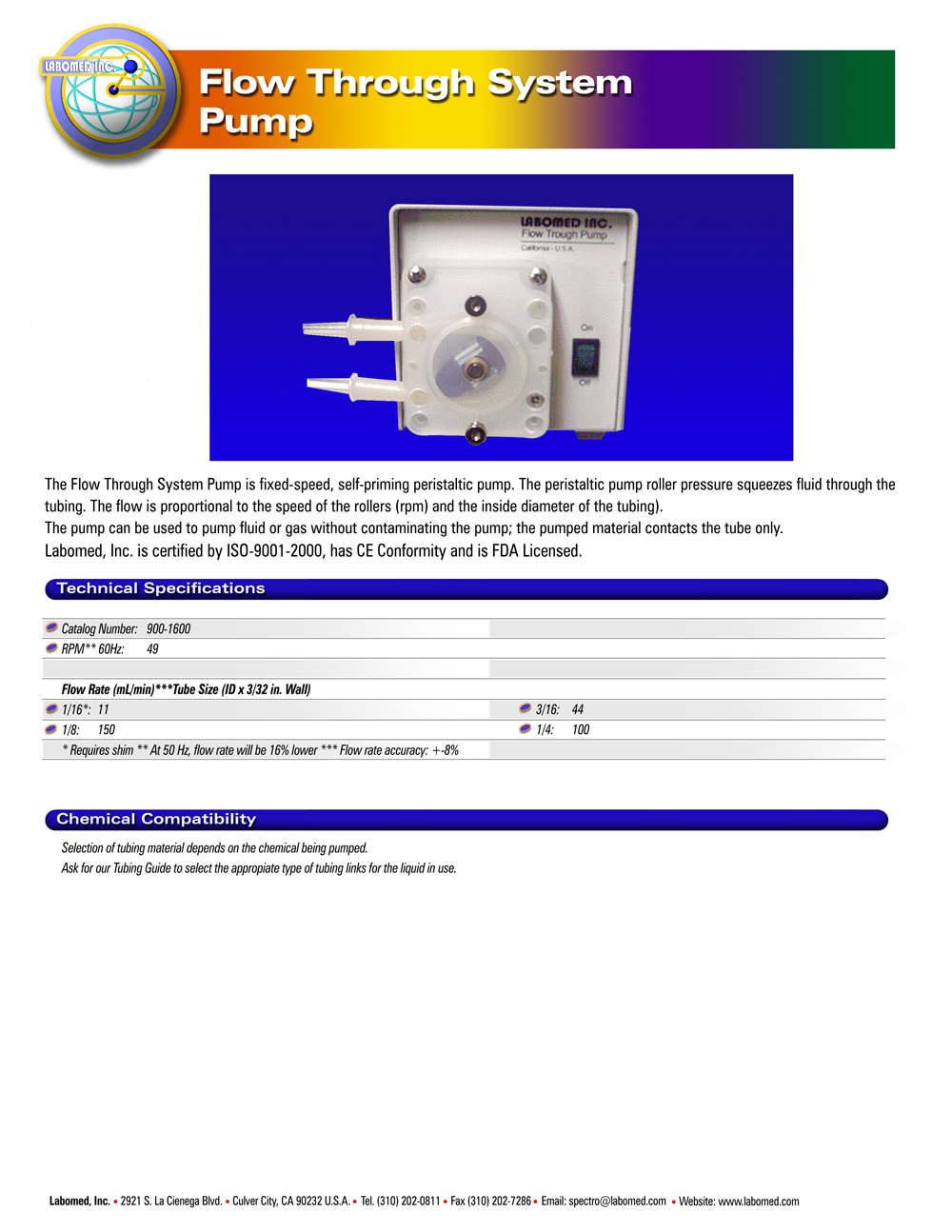

Brochure - Arabic



Brochure - Spanish

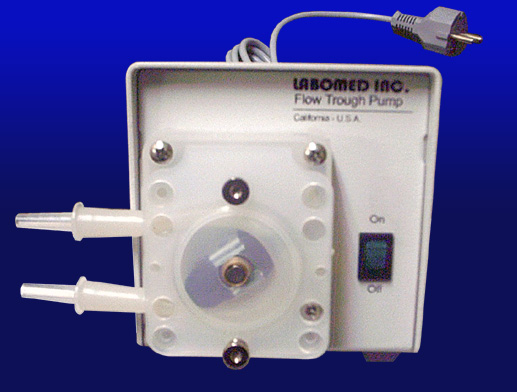

The Flow Through System Pump is a fixed-speed, self priming peristaltic pump. The peristaltic pump roller pressure squeezes fluid through the tubing. The flow is proportional to the speed of the rollers (rpm) and the inside diameter of the tubing).

The pump can be used to pump fluid or gas without contaminating the pump; the pumped material contacts the tube only.

Technical Specifications

TUBING SIZE SELECTION
Catalog No.
RPM** 60Hz
Flow Rate (mL/min)***
Tube Size (ID x 3/32 in. Wall)
1/16*
1/8
3/16
1/4
Labomed
900-1600
49
11
44
100
150

* Requires shim

** At 50 Hz, flow rate will be 16% lower
*** Flow rate accuracy: +-8%

CHEMICAL COMPATIBILITY

Selection of tubing material depends on the chemical being pumped.
Ask for our Tubing Guide to select the appropiate type of tubing links for the liquid in use.
