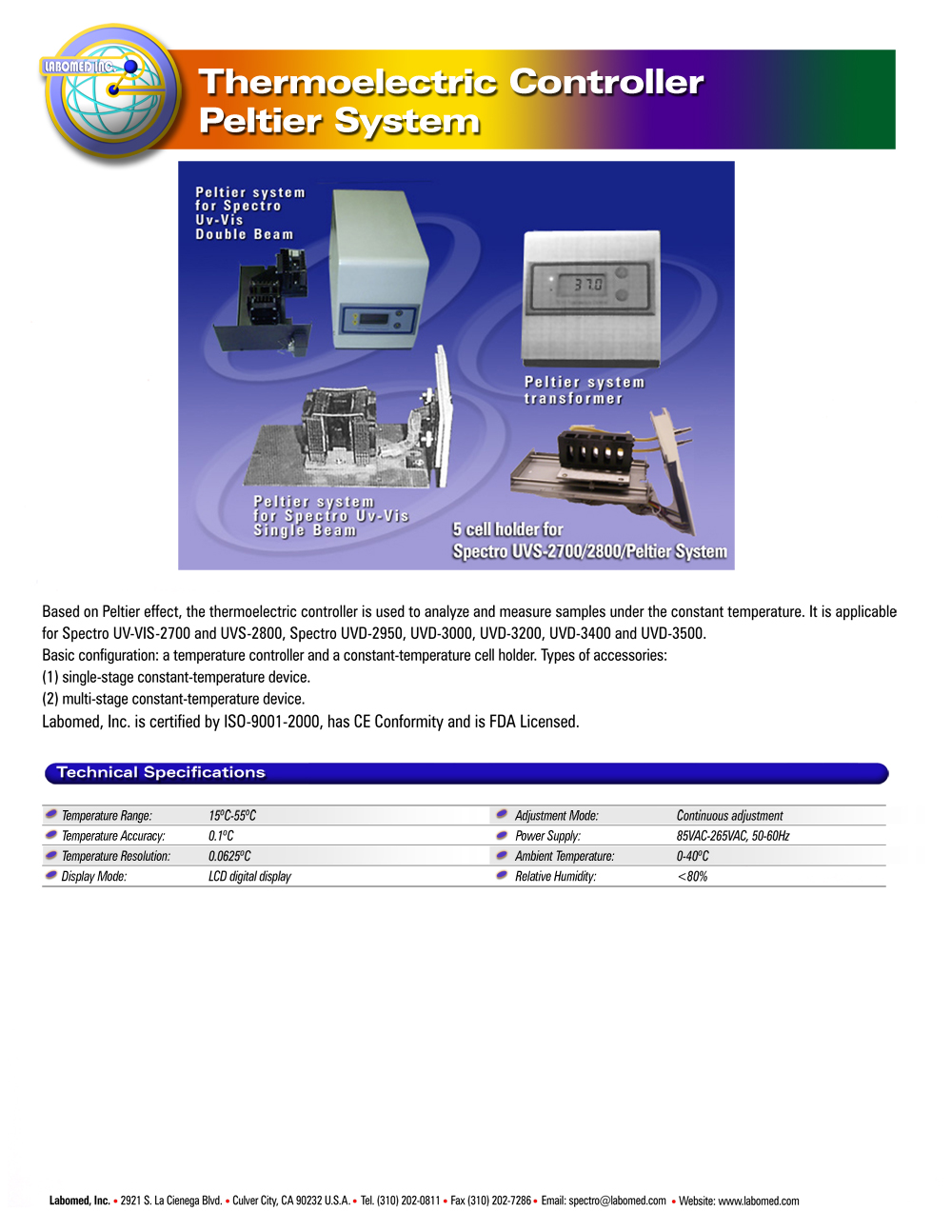

Thermoelectric Controller - Peltier System



Click here to see brochure

Brochure - Arabic

Brochure - Espanol

Brochure - French

Based on Peltier effect, the thermoelectric controller is used to analyze and measure samples under the constant temperature. It is applicable for Spectro UV-VIS-2700 and UVS-2800, Spectro UVD-2950, UVD-3000, UVD-3200, UVD-3400 and UVD-3500.

Basic configuration: a temperature controller and a constant-temperature cell holder.
Types of accessories: (1) single-stage constant-temperature device.
(2) multi-stage constant-temperature device

Technical Specifications

  • Temperature range: 15șC-55șC
  • Temperature accuracy: 0.1șC
  • Temperature resolution: 0.0625șC
  • Display mode: LCD digital display
  • Adjustment mode: continuous adjustment
  • Power supply: 85VAC-265VAC, 50-60Hz
  • Ambient temperature: 0-40șC
  • Relative humidity: <80%
