Labomed Inc.

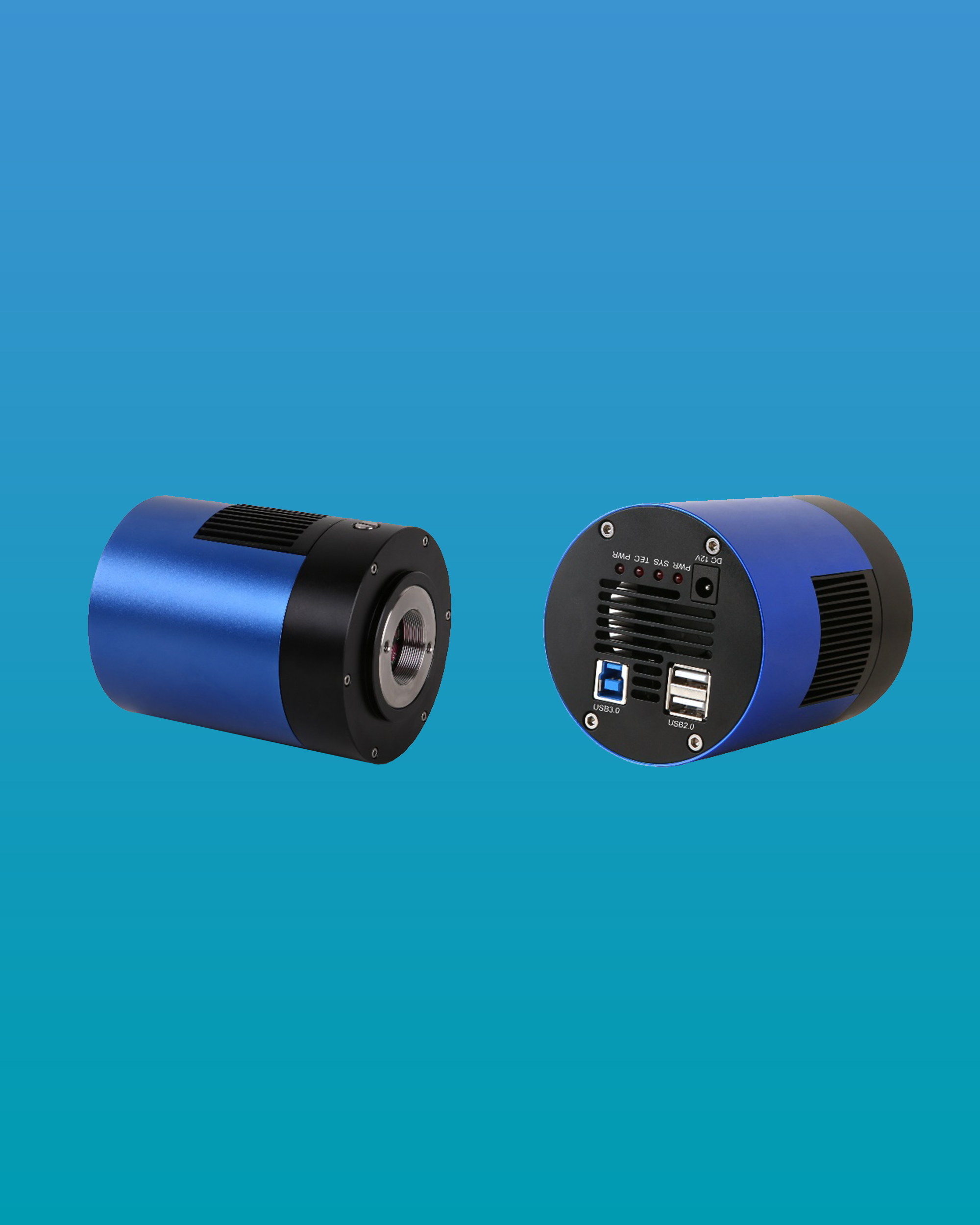

LC-30 20M/IMX183 Cooled C-mount USB3.0 CMOS Camera

for Low Light and Fluorescent Microscope

LC-30 20M/IMX183 Cooled C-mount USB3.0 CMOS Camera have adopted SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate. With the two-stage peltier cooling sensor chip to -42 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed. LC-30 20M/IMX183 Cooled C-mount USB3.0 CMOS Camera come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.


Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

The basic characteristic of LC-30 20M/IMX183 Cooled C-mount USB3.0 CMOS Camera can be summarized as follows:

  • Standard C-Mount camera with SONY Exmor CMOS sensors from 1.7M to 20M;

  • Two-stage TE-cooling with controllable electric fan;

  • Sensor chip cooling up to 42°C below ambient temperature;

  • Working temperature can be regulated to specified temperature in 5 minutes;

  • Smart structure to assure the heat radiation efficiency and avoid the moisture problem;

  • IR-CUT/AR coated windows;

  • Up to 1 hour long time exposure;

  • USB3.0 5Gbit/second interface ensuring high speed data transmission;

  • Ultra-FineTM color engine with perfect color reproduction capability;

  • With advanced video & image processing application ImageView;

  • Support both video and trigger modes;

  • Providing Windows/Linux/Mac OS multiple platforms SDK;

  • Native C/C++, C#/VB.NET, DirectShow, Twain control API.


Top of the Page

Applications

The LC-30 20M/IMX183 Cooled C-mount USB3.0 CMOS Camera can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky applications.

Technical Specifications

Model LC-29
Sensor & Size(mm) 20M/IMX183(C)
1 “(13.056x8.755)
Pixel(μm) 2.4 x2.4
G Sensitivity 462mv with 1/30s
Dark Signal 0.21mv with 1/30s
FPS/Resolution 5@5440x3648
10@4096x2160
15@2736x1824
30@1824x1216
Binning 1x1,
1x1,
2x2,
3x3
Exposure 0.1ms~3600s

Packaging

Standard Package
A Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo (TBD)
B 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.8Kg/ box); Carton size: L:28.2cm W:25.2cm H:16.7cm (TBD)
C LC-30 camera(C-mount)
D Drying tube and desiccant
E Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC12 V 3A
F High-Speed USB3.0 A male to B male gold-plated connectors cable /1.5m
G CD (Driver & utilities software, Ø12cm)
Optional Accessory
H Adjustable lens adapter C-mount to Dia.23.2mm eyepiece tube BCN2A-0.37×
(Please choose 1 of them for your microscope) BCN2A-0.5×
  BCN2A-0.75×
  BCN2A-1×
C-Mount to Dia.31.75mm eyepiece tube BCN3A-0.37×
(Please choose 1 of them for your telescope) BCN3A-0.5×
  BCN3A-0.75×
  BCN3A-1×
I Fixed lens Adapter C-mount to Dia.23.2mm eyepiece tube BCN2F-0.37×
(Please choose 1 of them for your microscope) BCN2F-0.5×
  BCN2F-0.75×
  BCN2F-1×
C-mount to Dia.31.75mm eyepiece tube BCN3F-0.37×
(Please choose 1 of them for your telescope) BCN3F-0.5×
  BCN3F-0.75×
  BCN3F-1×
Note: For H and I optional items, please specify your camera type (C-mount, microscope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application.
J (Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
K (Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
L Calibration kit 106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
