LC-31 HDMI/GigE/WiFi Multi-outputs C-mount CMOS Camera with High Sensitivity and Low Dark Current (Compatible with Leica and Zeiss Microscopes)
The LC-31 HDMI/GigE/WiFi Multi-outputs C-mount CMOS Camera with High Sensitivity and Low Dark Current is the next-generation live-view imaging-system with 4K resolution at 60/30 FPS.
LC-31 HDMI/GigE/WiFi Multi-outputs C-mount CMOS Camera with High Sensitivity and Low Dark Current comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.
The camera use a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via Gigabit Ethernet (GE) for image-capture and video-recording.
Hardware 3D denoising, sharpness and local tone mapping control functions greatly improve the image and video quality.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video, still images, and includes limited processing features.
The LC-31 HDMI/GigE/WiFi Multi-outputs C-mount CMOS Camera with High Sensitivity and Low Dark Current is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
The basic characteristics are listed as below:
1. Sony Exmor CMOS sensor;
2. 4K HDMI/ LAN/Wi-Fi / USB multiple video outputs;
3. 4K/1080P auto switching according to the monitor resolution;
4. SD card/USB flash disk for the captured images and videos storage, support local preview and playback;
5. Embedded XCAMView for the control of the camera and image processing with mouse, no shaking;
6. Excellent ISP with local tone mapping and 3D denoising;
7. ImageView software for PC;
8. iOS/Android applications for smart phones or tablets.
| Model | LC-31 |
| Sensor & Size(mm) | 4K/Sony IMX334(C) 1/1.8"(7.68x4.32) |
| Pixel(μm) | 2.0x2.0 |
| G Sensitivity | 505mv with 1/30s |
| Dark Signal | 0.13mv with 1/30s |
| FPS/Resolution | 60@3840*2160(HDMI) 30@3840*2160(NETWORK) 30@3840*2160(USB) |
| Binning | 1x1 |
| Exposure | 0.04~2000 |
| Interface & Button Functions | |||
|
USB Mouse | Connect USB mouse for easy operation of the embedded XCAMView software | |
| USB3.0 | Connect USB flash drive to save pictures and videos(Host Mode); | ||
| Connect 5G WLAN module to transfer video wirelessly in real time(AP/STA, Host Mode); | |||
| Connect computer with USB connection to transfer video in real time (Device Mode). | |||
| HDMI | Comply with HDMI2.0 standard. 4K/1080P format video output and supporting auto switching between 4K and 1080P format according to the connected monitor resolution | ||
| LAN | LAN port to connect router and switch to transfer video | ||
| SD | Comply with SDIO3.0 standard and SD card could be inserted for the images or videos storage | ||
| DC12V | Power adapter connection (12V/1A) | ||
| ON/OFF | Power switch | ||
| LED | Camera status indicator | ||
| Other Specification for HDMI Output | |||
| UI Operation | With USB Mouse | ||
| Image Capture | 8M (3840*2160) JPEG/TIFF Image in SD Card or USB Flash Drive | ||
| Video Record | Video format: 4K(3840*2160) H264 encoded MP4 file; | ||
| Video saving frame rate: 50~60fps (related with SD card and video resolution); | |||
| Measurement Saving | Measurement information saved in different layer with image content; | ||
| Measurement information is saved together with image content in burn in mode. | |||
| Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control | ||
| Toolbar | Including Zoom, Mirror, Comparison (Video~image, image~image), Freeze, Cross, Browser Function | ||
| Other Specification for LAN Output | |||
| White Balance | Auto/Manual/ROI White Balance | ||
| Color Technique | Ultra-FineTM Color Engine | ||
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) | ||
| Recording System | Still Picture or Video | ||
| Software Environment | |||
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) | ||
| OSx(Mac OS X) | |||
| Linux | |||
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | ||
| Memory: 4GB or More | |||
| Ethernet Port: RJ45 Ethernet Port | |||
| Display:19” or Larger | |||
| CD-ROM | |||
| Operating Environment | |||
| Operating Temperature (in Centigrade) | -10°~ 50° | ||
| Storage Temperature (in Centigrade) | -20°~ 60° | ||
| Operating Humidity | 30~80%RH | ||
| Storage Humidity | 10~60%RH | ||
| Power Supply | DC 12V/1A Adapter | ||
APPLICATION
1. Scientific research, digital teaching (teaching, demonstration and academic discussing);
2. Digital laboratory, medical research;
3. Machine vision (PCB detection, IC quality control);
4. Medical treatment (pathological observation);
5. Food (microbial colony observation and counting);
6. Aviation and military.
| Other Specification for HDMI Output | ||
| UI Operation | With USB Mouse | |
| Image Capture | 8M (3840*2160) JPEG/TIFF Image in SD Card or USB Flash Drive | |
| Video Record | Video format: 4K(3840*2160) H264 encoded MP4 file; | |
| Video saving frame rate: 50~60fps (related with SD card and video resolution); | ||
| Measurement Saving | Measurement information saved in different layer with image content; | |
| Measurement information is saved together with image content in burn in mode. | ||
| Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control | |
| Toolbar | Including Zoom, Mirror, Comparison (Video~image, image~image), Freeze, Cross, Browser Function | |
| Other Specification for LAN Output | ||
| White Balance | Auto/Manual/ROI White Balance | |
| Color Technique | Ultra-FineTM Color Engine | |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) | |
| Recording System | Still Picture or Video | |
| Software Environment | ||
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) | |
| OSx(Mac OS X) | ||
| Linux | ||
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | |
| Memory: 4GB or More | ||
| Ethernet Port: RJ45 Ethernet Port | ||
| Display:19” or Larger | ||
| CD-ROM | ||
| Operating Environment | ||
| Operating Temperature (in Centigrade) | -10°~ 50° | |
| Storage Temperature (in Centigrade) | -20°~ 60° | |
| Operating Humidity | 30~80%RH | |
| Storage Humidity | 10~60%RH | |
| Power Supply | DC 12V/1A Adapter | |
| Standard Packing List | ||
| A | Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.43Kg/ box) | |
| B | LC-31 | |
| C | Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A | |
| American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC | ||
| EMI Standard: EN55022, EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 | ||
| EMS Standard: EN61000-4-2,3,4,5,6,8,11, EN61204-3, Class A Light Industry Standard | ||
| European standard: Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS | ||
| EMI Standard: EN55022, EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 | ||
| EMS Standard: EN61000-4-2,3,4,5,6,8,11, EN61204-3, Class A Light Industry Standard | ||
| D | USB Mouse | |
| E | HDMI 2.0 Cable(Support 3840x2160, 60FPS) | |
| F | High-speed USB3.0 A male to A male gold-plated connectors cable /2.0m | |
| G | CD (Driver & utilities software, Ø12cm) , USB flash drive is optional | |
| Optional Accessory | ||
| H | SD Card (16G or above; Speed: Class 10) | |
| I | USB WLAN adapter | |
| J | Ethernet cable | |
| K | Adjustable lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube |
| (Please choose 1 of them for your microscope) | ||
| C-Mount to Dia.31.75mm Eyepiece Tube | ||
| (Please choose 1 of them for your telescope) | ||
| L | Fixed lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube |
| (Please choose 1 of them for your microscope) | ||
| C-Mount to Dia.31.75mm Eyepiece Tube | ||
| (Please choose 1 of them for your telescope) | ||
| Note: For K and L optional items, please specify your camera type (C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||
| M | Dia.23.2mm to 30.0mm Ring/Adapter rings for 30mm eyepiece tube | |
| N | Dia.23.2mm to 30.5mm Ring/ Adapter rings for 30.5mm eyepiece tube | |
| O | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); |
| 106012/TS-M2(X,Y=0.01mm/100Div.); | ||
| 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) | ||
Packaging

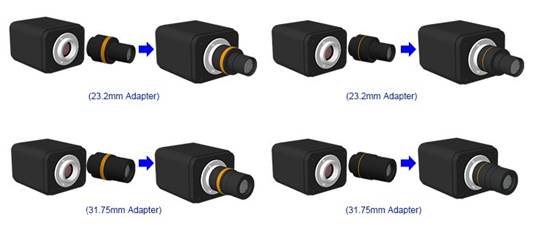

Optional Extension for LC-31 with Microscope or Telescope Adapter
| Extension | Picture | |
| C-mount Camera |  |
Machine vision; Medical imaging; |
| Semiconductor equipment; Test instruments; | ||
| Document scanners; 2D barcode readers; | ||
| Web camera and security video; | ||
| Microscope imaging; | ||
| Microscope Camera |  |
|
| Telescope Camera | ||
Sample Images
LC-31 and Microscopes
LC-31 and Zeiss Microscopes
LC-31 and Leica Microscopes
