Labomed Inc.

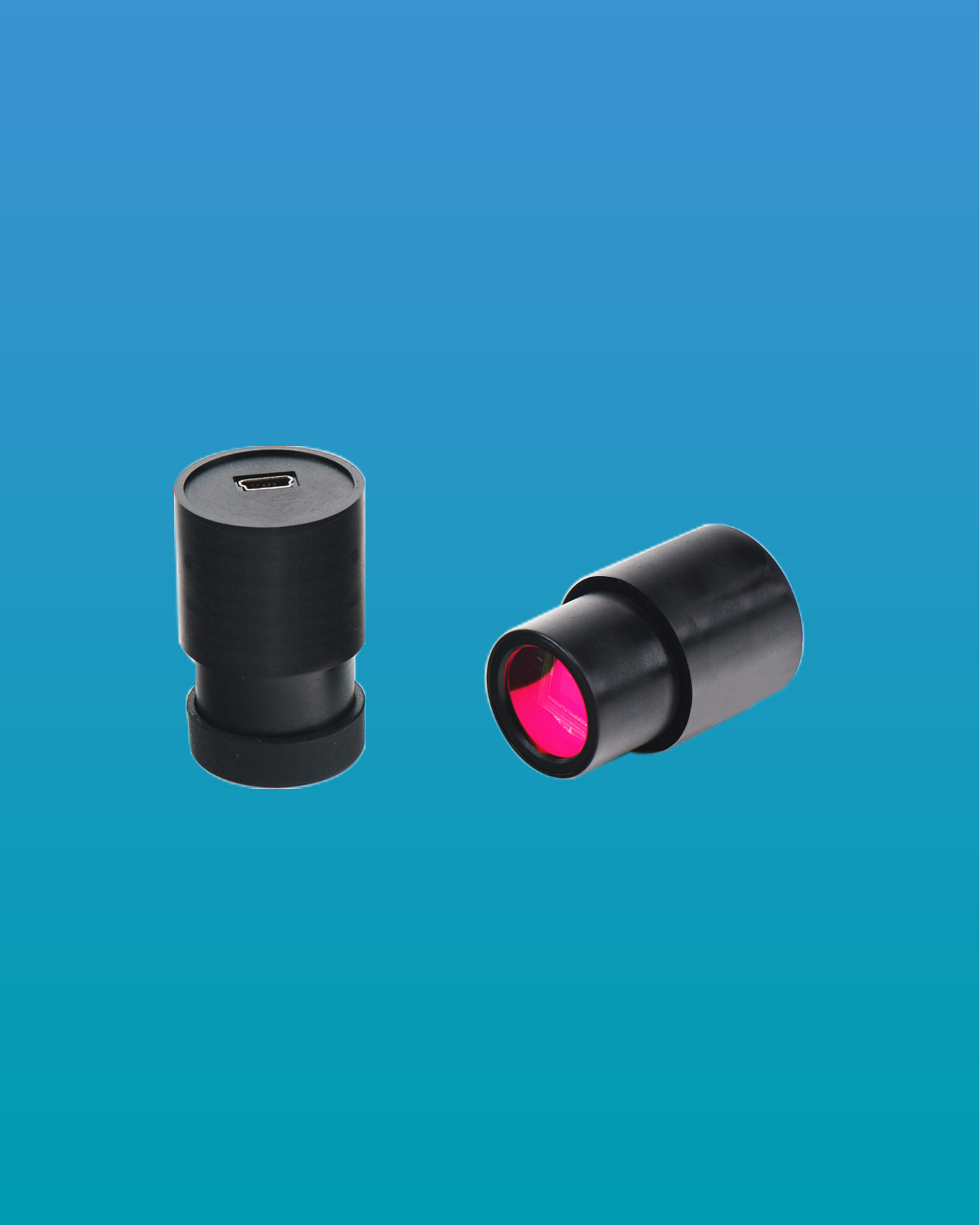

LC-36 - 2.1MP USB2.0 CMOS Eyepiece Camera

LC-36 2.1M USB2.0 CMOS Eyepiece Camera are economic version with simple and compact structure CMOS eyepiece cameras (digital eyepiece). USB2.0 is used as the data transfer interface.

The LC-36 2.1M USB2.0 CMOS Eyepiece Camera come with high-speed USB2.0 interface and high frame rate video display, which keep the screen smooth without interruption. Also the LC-36 2.1M USB2.0 CMOS Eyepiece Camera comes with advanced video & image processing application ImageView.

The LC-36 2.1M USB2.0 CMOS Eyepiece Camera can be widely used to transfer the monocular or binocular student microscopes to digital microscope. With 23.2 to 30mm or 23.2 to 30.75 convert ring, the LC-36 2.1M USB2.0 CMOS Eyepiece Camera can also change the stereo microscope to digital stereo microscope.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Top of the Page

Technical Specifications

Model LC-36
Sensor & Size(mm) 2.1M/IMX307(C) 1/2.8“ (5.73x4.3)
Pixel(μm) 2.9x2.9
G Responsivity 1300mV
Dynamic range 73dB
SNRmax 43dB
FPS/Resolution 38@2048x1536
38@1024x768
Binning 1x1
1x1
Exposure 0.1-2000 ms


Other Specification for LC-36


Spectral Range 380-650nm (with IR-cut Filter)
White Balance Auto White Balance
Color Technique N/A
Capture/Control API  Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System  Still Picture and Movie
Cooling System*  Natural
Operating Environment
Operating Temperature(in Centidegree) -10~ 50
Storage Temperature(in Centidegree) -20~ 60
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB Port
Software Environment
Operating System  Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
OSx(Mac OS X)
Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB Port: USB2.0 High-speed Port
Display: 17” or Larger
CD-ROM

Dimension

The LC-36’s body is made of aluminum alloy blackening, ocular housing: Dia.27.2 X 40mm ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT filter to filter the infrared light and protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other camera solutions.

Packing Information
Standard Camera Packing List
A Carton L:52cm W:32cm H:33cm (50pcs, 12~17Kg/ carton), not shown in the photo
B Gift box L:14.5cm W:9.5cm H:6.0cm (0.15~0.16Kg/ box)
C LC-36 USB2.0 eyepiece camera
D High-Speed USB2.0 A male to mini B 5-pin male gold-plated connectors cable /1.5m
E CD (Driver & utilities software, Ø8cm)
Optional Accessory
F C-Mount Adapter Housing:108027(HS502)
G 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
H 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
I 108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube
J Calibration kit 106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
