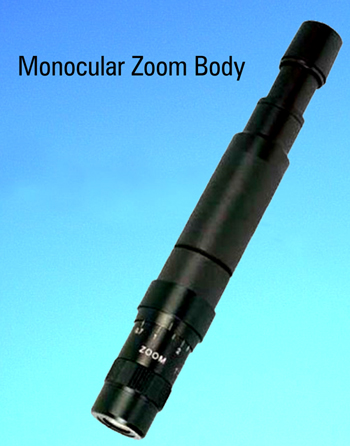

LB-100 Monocular Microscope
LB-100 Monocular Microscope is specially designed to work with CCD and other cameras (Including USB digital cameras, VGA
digital cameras and HDMI digital cameras etc.) which have a C-mount and can display the image on a LCD monitor, TV and PC. It has
features of high-resolution, high contrast, large depth of field, long working distance, high zoom ratio and is easy to operate. It consists of objective, zoom body and CCD video eyepiece. The standard configuration comes with 1× video eyepiece and 1× objective.
0.5×, 0.75×, 1.5×, 2×video eyepieces and 0.5×, 0.75×, 1.5×, 2× objectives are optional. LB-100 can be used in
semiconductor and electronics industry, biological, education and scientific research area.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Features
High resolution and high zoom ratio(1:8) .
Long working distance of 117mm.
Wide field of view: upto 222mm(calculated with camera sensor of 1/2”)
Alternative objective lens and eyepiece are available, so as to obtain a multiple magnification.
|
Top
of the Page
Technical Specifications
Application
With excellent performance, complete accessories, easy to operate features, LB-100 can be widely used in semiconductor and electronic industry for small parts inspection, assembly and repair. It also can be applied to biological anatomy, jewelry inspection, schools education and research areas with special stand and objectives.
Eyepiece: |
1× (standard) |
Objective: |
1× (standard) |
Working distance: |
117mm |
zoom magnification: |
0.4×-3.2× |
Zoom Ratio: |
1:8, with eyepiece and objectives, optical magnification range: 0.1×-12.8× |
Max. Adaptive CCD size: |
2/3″ |
Diameter: |
The diameter of the BS-1030 part which is connected to the focusing arm is 40mm. |
CCD connector: |
Standard C-mount, the distance to camera sensor is 17.53mm. |
|
ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
