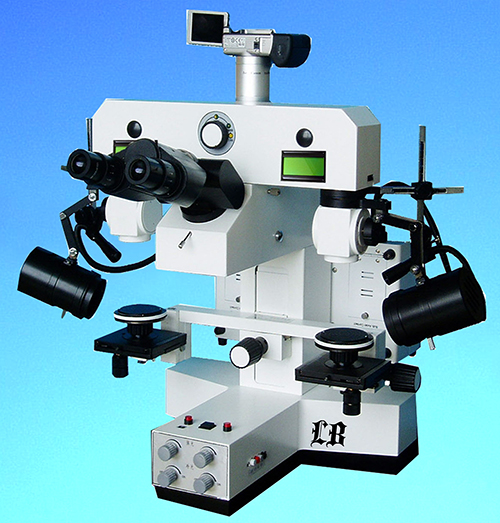

LB-1020 Digital Comparison Microscope
with Camera and Sofware (3.0MP)

LB-1020 Digital Comparison Microscope with Camera and Software (3.0MP) is a high level Digital Comparison Microscope, it has a built-in digital image analysis system, it is basically used for forensic science and police departments. It is also provided to these departments such as police training schools, banks, tax, print, coinage, archaeology and etc.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • 3Megapixel CCD camera, supports USB/AV output, have camera connector
  • 2.5×-130×, LCD display
  • 24V 300W cold light source, adjustable
  • This microscope comes with camera and software and illuminates by R, G, B LED cold light, and can change color. This microscope focuses electronically. It focuses by an electrical button. The objectives are changed, one by one.

Top of the Page

Technical Specifications

Optical Magnification Range

2.5×-130×, LCD display

Eyepiece

WF10×(Ф22mm) interpupillary distance 60-75mm

Objective

0.8×, 1.2×, 2×, 3.5×, 4×(0.3×, 2× optional)

Field of view Diameter

Ф0.6mm~Ф92mm

Built-in image capture system

3Megapixel CCD camera, support USB/AV output, have camera connector

Working Distance

100mm

Object Stage

100mm×100mm, moving range: 50mm×50mm, vertically 55mm

Horizontally Moving Range

50mm

Power-driven Elevating Range

70mm

Illumination

24V 300W cold light source, adjustable

Power Supply

220V AC input, 24V DC stable Voltage Output, fit for International safety standards

Optional Accessories (must be ordered separately)

WF16×, WF20× Eyepiece

LED High power 5W multi-band light source

Bullet marks Analyzer

Digital Camera Connector

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
