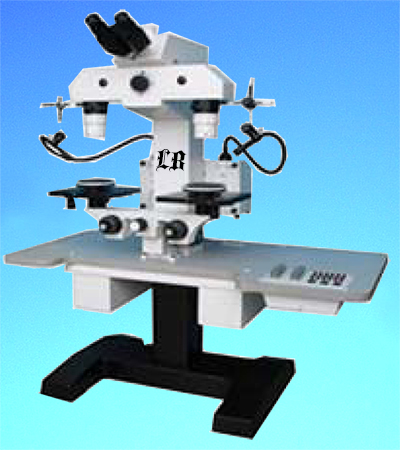

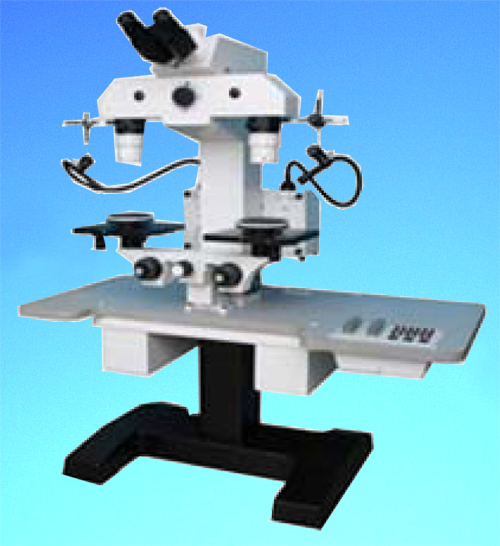

LB-1030 Digital Comparison Zoom Microscope
with Camera and Sofware (3.0MP) and
Infrared Enhanced Optical System

LB-1030 Digital Comparison Zoom Microscope with Camera and Software (3.0MP) and Infrared Enhanced Optical System is a high level Digital Comparison Microscope, it has a built-in digital image analysis system, it is basically used for forensic science and police departments. It is also provided to these departments such as police training schools, banks, tax, print, coinage, archaeology and etc.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.



Features

  • 3Megapixel CCD camera, supports USB/VGA/AV/DAI output, has camera connector
  • 9×-118× (Can be expanded to 2.7×-236×) Optical Magnification Range
  • NC infrared optical enhancement system Wavelength: 750nm, 800nm, 850nm, 900nm, 950nm
  • This comparison zoom microscope comes with camera and software and working table. This microscope has a zoom objective to focus electronically and illuminates by R, G, B LED light, with 50,000 hour lifetime cold light illumination, and changes color. It focuses by an electrical button. It has a zoom objective.


Top of the Page

Technical Specifications

Optical Magnification Range

9×-118× (Can be expanded to 2.7×-236×)

Eyepiece

WF10×/Ф24mm WF20×Ф12.5mm, interpupillary distance 55-75mm

Objective

0.7×~4.5× zoom,zoom ratio is 1:6.5

Field of view Diameter

Ф0.6mm~Ф92mm

Built-in image capture system

3Megapixel CCD camera, supports USB/VGA/AV/DAI output, has camera connector

NC infrared optical enhancement system

Wavelength: 750nm, 800nm, 850nm, 900nm, 950nm

Working Distance

95mm

Object Stage

180mm×180mm, moving range: 80mm×80mm, vertically 70mm

Horizontally Moving Range

45mm

Power-driven Elevating Range

Whole stage 170mm, Bridge 70mm

Illumination

24V 300W cold light source, adjustable
LED Illumination, brightness adjustable, light spot and color adjustable

Power Supply

220V AC input, 12V/24V DC stable Voltage Output, fit for International safety standard

Optional Accessories (must be ordered separately)

0.3×, 2× Objective

Bullet marks Analyzer

Digital Camera Connector

Folding Laptop Stand

Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
