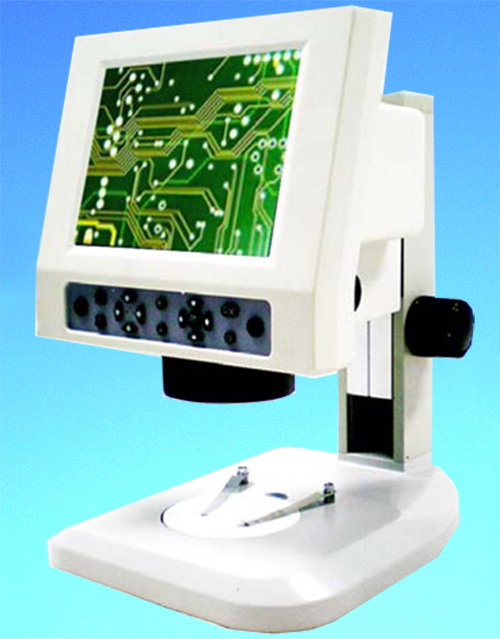

LB-1320 Digital LCD Stereo Microscope

LB-1320 Digital LCD Stereo Microscopes have renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging and a high resolution LCD screen. Magnification range is 9x-240x. This patented microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope at work for a long time.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • It features a high resolution LCD screen to generate genuine photo and video. This product integrates magnification, imaging, display and built-in LED illumination functions.
  • Based on 2D observation, 3D angle attachment is added to obtain 3D multi-angle observation, which makes inspection easy and comfortable.
  • With a 5.0MP high definition built-in camera, 8 inches high resolution LCD screen, images can be easily view through the screen.
  • Images and videos can be stored in the SD card.

Top of the Page

Technical Specifications

Applications

LB-1320 can be easily used to test and inspect product assembly, research and teaching fields.















Digital Parts

Resolution

5 Megapixel

Maximal Resolution

2560×1920

Photo Resolution

2560×1920∽1600×1200

Video Resolution

640×480

Sensor Size

1/2.5 Inches

LCD Screen

8 Inches TFT Screen, Resolution is 800 X 600

Video Output

AV Output (NTSC/PAL)

Data Output

USB2.0

Menu Language

English

Storage

SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)

Scene Mode

Standard / Softness / Vivid

Exposure Mode

Auto Exposure

Date Mode

Year, Month, Day, Hour, Minute



Voltage Input

100V-240V 60HZ/50HZ





Optical Parts

Objective Zoom Range

0.7×-4.5

Zooming Ratio

1:6.5

Magnification

19×-120×

Visual Field

6.8×8.9-1.0×1.3mm

Working Distance

88mm


Optional Parts (must be ordered separately)


Objective


0.5X/0.75X/1X/1.5X/2X

Base Light

Built-in LED Base Illumination: 45pcs LED Bulbs,5W

Longer Stand and Base:

Using 0.5X Objective Lens ,Working Distance is 175mm (Max)

Sample Images



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
