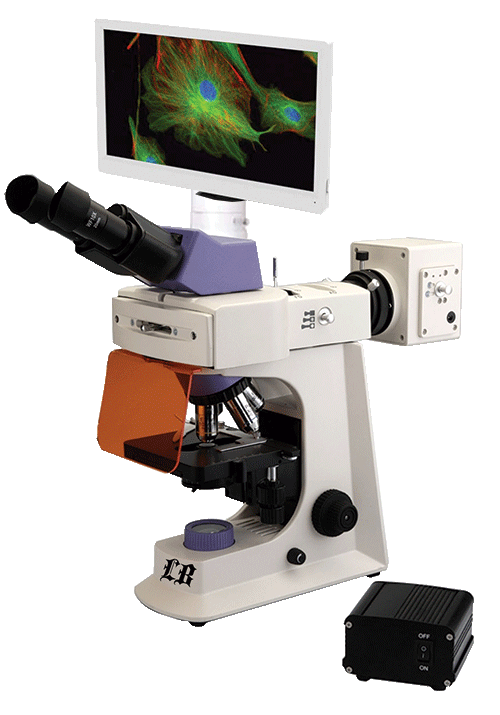

LB-1750 Compound Digital LCD Fluorescence Microscope with Wide Field, Infinite E-Plan Achromatic Objectives, Mechanical Stage, and HD LCD Digital Camera (6.0MP)



The latest improved LB-1750 Compound Digital LED Flourescence Microscope with Wide Field, Infinite E-Plan Achromatic Objectives, Mechanical Stage, and HD LCD Digital Camera (6.0MP) has upgraded to make the fluorescent unit with a turret type. It has 6 positions for different filters, with an optional UV filter, along with a 6.0MP LCD camera and monitor.

HD LCD Digital Camera (6.0MP) is a brand new high performance and highly cost-effective, super reliable HD LCD camera which combines an full HD camera and a retina HD LCD screen. With the built-in software, the LC-30 can be controlled by a mouse to take pictures, take videos and do simple measurement. Equipped with Sony COMS sensor and 11.6” retina HD LCD screen, it is developed specifically for different microscopy applications.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

Excellent fluorescent image with infinite optical system.

LED illumination with 50,000 hours life span.

Convenient to use, no need to warm up.

No need for cooling due to LED cold light source.

6 positions for filter cubes..

HD LCD Camera (6.0MP) features

Control camera with mouse from USB port, no shaking.\

11.6” retina HD LCD Screen, high definition and high quality color reproduction

6.0MP still image capture and 1080P Video Recording.

Save image and video to SD card.

HDMI Output from the camera to the LCD screen, frame rate up to 60fps.

Can be connected to PC and take picture, take video, do measurement and analyze images.

Standard C-mount Interface for different microscopes.





Top of the Page

Technical Specifications

Applications

LB-1750 Compound Digital LED Flourescence Microscope with Wide Field, Infinite E-Plan Achromatic Objectives, Mechanical Stage, and HD LCD Digital Camera (6.0MP)are used to study the absorbing, transportation, chemicals distribution and positioning in cells. They are widely used in disease examination, immune diagnosis and life science areas.

Optical System

Infinite optical system

Viewing Head

Seidentopf Trinocular viewing head, inclined at 30 degree, 360 degree rotatable, Interpupillary distance 50-75 mm.

Eyepiece

WF 10X/20mm
WF 16X/13 (optional)

Objective

Infinite E-Plan Achromatic objectives 4X, 10X, 40X, 100x (OIL)

Nosepiece

Backward Quadruple Nosepiece
Backward Quintuple Nosepiece (optional)

Focusing

Coaxial coarse and Fine focusing knobs,
Travel range: 26mm, scale: 2um

Stage

Stage size 145X140mm, Cross Travel 76X52mm, Two slide holder

Condenser

Abbe condenser NA 1.25 with Iris Diaphragm

Transmitted Illumination

6V/20W Halogen lamp, Brightness adjustable

Reflected Light Source



Excitation

Dichroic Mirror

Barrier Filter

Blue excitation

BP420~490

DM505

BA520



Green excitation

BP510~550

DM575

BA590


Lamp

3W LED lamp

Package:

42cmx28cmx45cm, 40cmx20cmx40cm, 12Kg

HD LCD Digital Camera (6.0MP)

HDMI Camera

Image Sensor

CMOS, Sony IMX236

Chip Size

1/2.8"

Video Resolution

1920 × 1080

Captured Image
Resolution

3264 × 1836 on SD card to LCD monitor,
1920 × 1080 and 3264 × 1836 with software to PC

Frame Rate

1920 × 1080 30fps via USB2.0
1920 × 1080 60fps via HDMI

Data Record

High speed SD Card (8G)

Video Record

1080p 30fps in SD Card
1080p 30fps in PC

Scan Mode

Progressive

Electronic Shutter

Electronic Rolling Shutter

A/D conversion

8 bit

Color Depth

24bit

Sensitivity

510mV

Dynamic Range

68dB

S/N ratio

52dB

Exposure time

0.001 sec ~ 10.0 sec

Exposure

Auto/Manual

White balance

Auto

Settings

Gain,Gamma,Saturation,Contrast, scale bar function

Built- in software

Cloud 1.0 version

PC software

ISCapture

Output model 1

USB2.0

Output model 2

HDMI

System Compatible

Windows XP/Vista/Win 7(32 and 64-bit ),MAC OSX

Optical port

C- Mount

Power Supply

DC 12V /2A

Operational Temperature

0-60°C

Humidity

45%-85%

Storage Temperature

-20-70°C

Retina Screen

Screen Size

11.6 inch

Aspect Ratio

16:9

Display Resolution

1920 × 1080

Display Type

IPS-PRO

Brightness

320cd/m2

Static Contrast Ratio

1000:1

Input

1*HDMI PORT

Power Supply

DC 12V /2A External Adapter

Dimension

282mm×180.5mm×15.3mm

Net Weight

600g

Applications

HD LCD Digital Camera (6.0MP) can be widely used in medical diagnosis, industrial production and inspection, laboratory research and related microscopy field for image, video capture and analysis. With the high image quality and easy to operate, it will be your best assistant.

  • Live Cell Imaging
  • Surgical Microscopic Imaging
  • Pathology
  • Cytology
  • Defect Analysis
  • Semiconductor Inspection
  • Navigation for Processed Imaging
  • Industrial Optical HD Digital Imaging
  • Astronomical Observation

Sample Images



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
