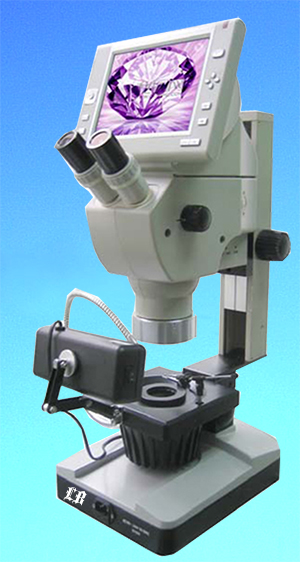

LB-1800 Digital LCD Gemological Microscope

LB-1800 Digital LCD Gemological Microscopes renovate the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time of working. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing by individuals and share with other people. It features an especially designed stand to view, identify and analyze precious stone samples and the pieces of jewelry in them.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • Offering crisp sharp and high resolution image with high bright LED point light, dark field illumination and fluorescent light source. It is a high level professional gemological microscope.
  • Designing with very good ideas can greatly improve the working efficiency, it is also easy to operate and makes operators feel more comfortable.

Top of the Page

Technical Specifications

Applications

LB-1800 is a precision microscope that is capable of inspecting diamonds, emeralds, rubies, and all other types of precious stones, it is usually used to inspect gemstones and in the design, production and repair of jewelry. This microscope is an ideal instrument for jewelers and gem stone experts, it is the most important tool in their jobs.









Digital Parts

Pixel

5 Megapixel

Photo Resolution

2560×1920-1600×1200

Video Resolution

640×480

LCD Screen

8 Inches TFT Screen, Resolution is 800× 600

Video Output

AV output (NTSC/PAL)

Data Output

USB2.0

Menu Language

English

Storage

SD Card (Maximal Storage Capacity is 4G)

Exposure Mode

Auto Exposure

Date Mode

Year, Month, Day, Hour, Minute









Optical Parts

Viewing Head

Binocular Head, Inclined 45°, interpupillary distance: 55mm-75mm

Eyepiece

SWF10X/22mm

Zooming Ratio

1:7.0

Eyepiece Diopter Correction

±5 Diopters

Working Distance

103mm

Objective Zoom Range

0.65X-4.5X

Illumination System

Bright / dark Field Illumination ( Light aperture: 41mm~2mm changeable diaphragm, it can adjust the beam of illumination. )

Gem Lamp, 8W daylight fluorescent lamp(6000)K

Single Cold Light Illuminator

Plat Clamp

Moderate to hold hard, conveniently.







Eyepiece

10X /20mm with a Reticle, Single Line 10mm/100 ,Cross Hair (0.1mm Micrometer) 15X/20X/25X

Objective

0.5X/0.75X

Longer Stand and Base

Using 0.5X Objective Lens ,Working Distance is 175mm (Max)

Clamp

Alligator Clamp or Steel Clamp



Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
