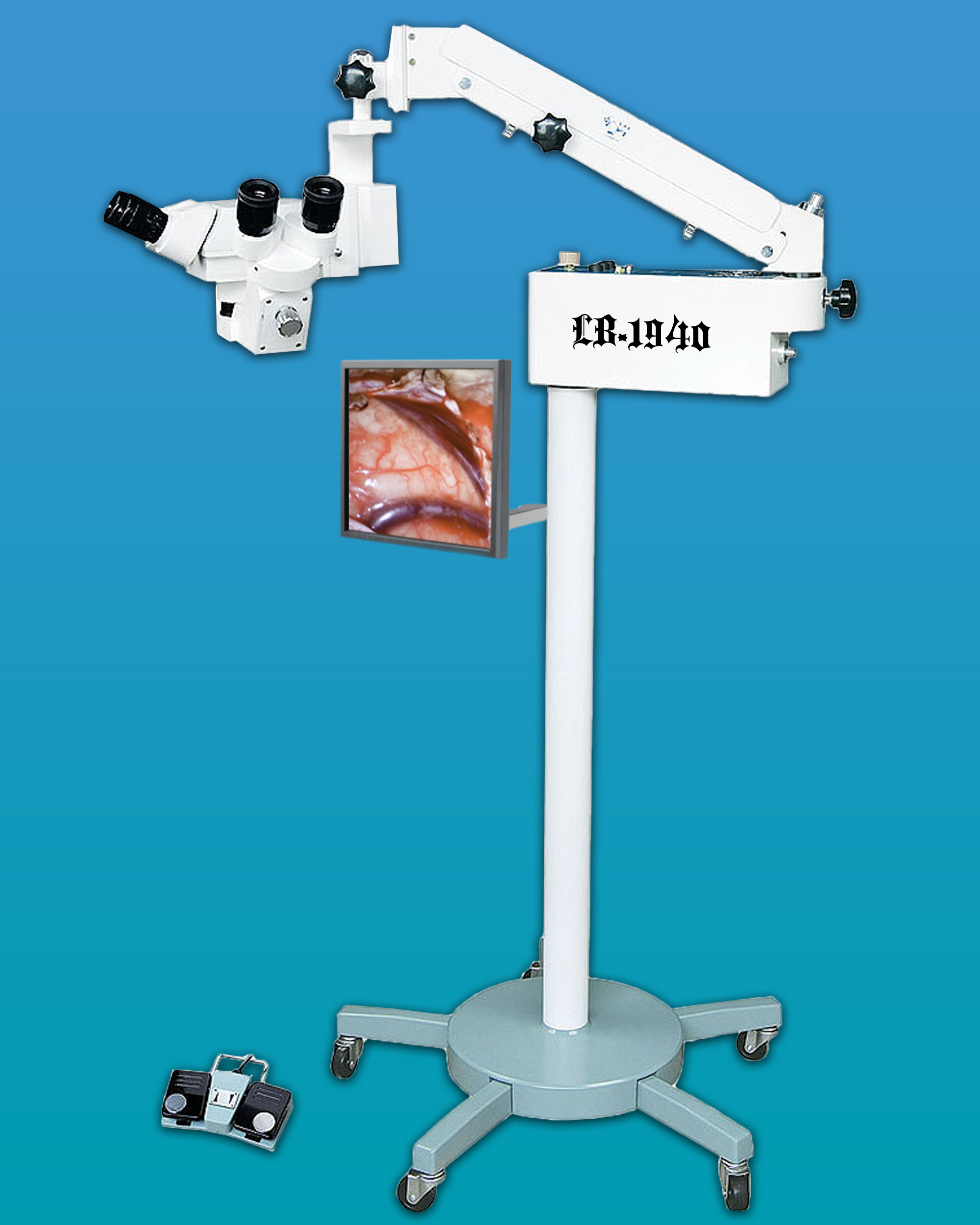

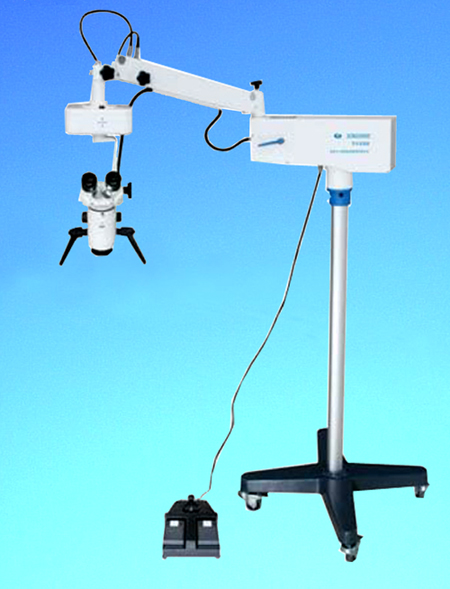

LB-1940 Surgical Operation Microscope

LB-1940 Operation Microscopes adopts a wholly new optical system, with clear image and wide view field, it is mainly used for operations and fine examinations of orthopedics, ophthalmology, gynecology, ENT, dentistry and so on.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • ZOOM magnification system, 4×~24× zoom magnification, horizontal movement of foot control and fine focusing.
  • Compact structure and complete functions.
  • Germany imported Schott optics ensure the sharp image and even field of view.
  • Cold light source fiber illumination does no harm to tissues.

OPTIONAL: Video Devices (1/2 or 1/4" CCD Camera, CCD Adapter, Beam Splitter and Connecting Cable)

Top of the Page

Technical Specifications

Applications

LB-1940 Visual Operation Microscopes adopts a wholly new optical system, with clear image and wide view field, it is mainly used for operations and fine examinations of ophthalmology, gynecology, ENT, dentistry and so on.

Eyepiece Magnification

12.5×/16B with diopter adjustment

Diopter Adjustment

±6D

Pupil Distance

50mm~75mm

Visual Angle of Eyepiece

30°~90°(Eyepiece moving between 0°~180°is optional )

Magnifications for Main Microscope (Diameter of Field)

4×~24×(41.5mm~7.5mm)

Objective Lens

f=200(f=175/250/300 is optional)

Maximal Resolution

119LP/mm

Working Distance

190mm

Illumination Source

15V/150W,Medical Cold-reflection Halogen Bulb

Illumination Type

6°+0° Coaxial Illumination

Coaxial Illumination

≥40,000lx

Filters

Orange filter(cobalt filter is optional)

Reaching Radius of Arm

1020mm

Adjustable Vertical Range

250mm

Fine Focusuing Range and Speed

30mm,≤2mm/s

Speed for X-Y and Range

50mm×50mm,≤2mm/s

Input Voltage

AC220V±22v/ 50Hz±1Hz、AC110V±11v / 60Hz±1Hz

Power

200VA

Fuse

T2AL 250V (51S-040H)、T4AL 125V (51S-080L)

Electrical Safety Standard

Executive Standard:GB9706.1-2007、Class I

Packing Volume

0.418m, 2cartons

Total Weight

87kg

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
