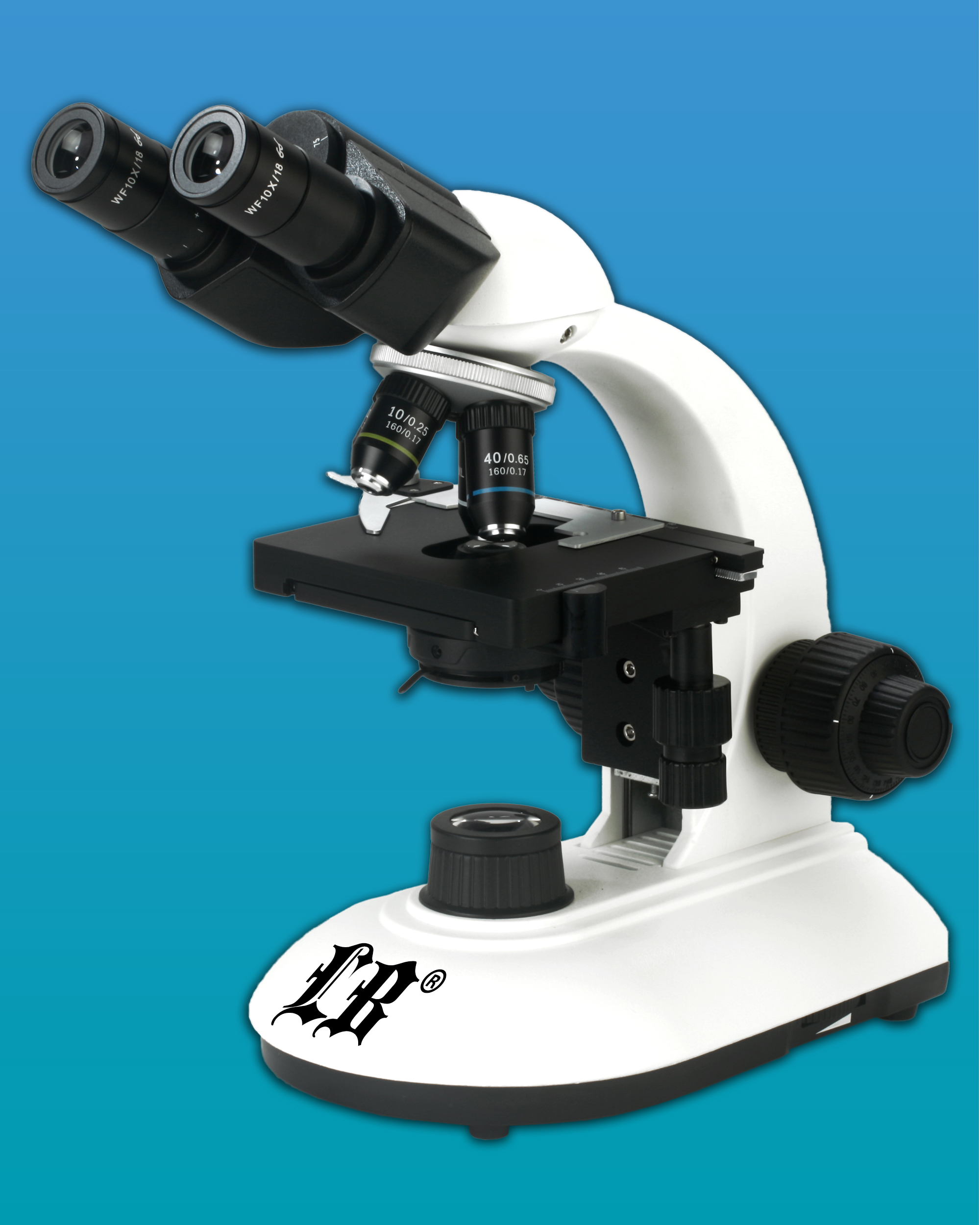

LB-202 Binocular Biological Microscope with Finite Plan Optical System, Plan Achromatic Objectives and LED Illumination

LB-202 Binocular Biological Microscope with Finite Optical System, Plan Achromatic Objective, Quadruple Nosepiece, and LED Illumination is economic, practical and easy to operate.

LB-202 Binocular Biological Microscope with Finite Optical System, Plan Achromatic Objective, Quadruple Nosepiece, and LED Illumination adopts LED illumination, which saves energy and have long working life, it is also very comfortable for observation.

LB-202 Binocular Biological Microscope with Finite Optical System, Plan Achromatic Objective, Quadruple Nosepiece, and LED Illumination is widely used in educational, academic, agricultural and study field. Rechargeable battery is optional for outdoors operation or places that power supply is not stable.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

1. New machining facility and advanced alignment technology.
2. Comfortable operation with ergonomic design.
3. LED light illumination, save energy and long working life.
4. Compact and flexible, ideally suited for desktop, laboratory worktable.

Top of the Page

Technical Specifications

Applications

LB-202 Binocular Biological Microscope with Finite Optical System, Plan Achromatic Objective, Quadruple Nosepiece, and LED Illumination is ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in schools, clinics, hospitals, academic labs and scientific research department.

Model LB-202
Optical System Finite Optical System
Viewing Head Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable,
Interpupillary Distance 48-75mm,
Eyepiece WF10×/18mm
Objective Plan Achromatic Objective 4×, 10×, 40×, 100×(Oil)
Nosepiece Quadruple Nosepiece
Stage Double Layer Mechanical Stage 125×115mm/ 75×35mm
Focusing Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Moving
Range 22mm
Condenser Abbe NA 1.25 with Iris Diaphragm
Illumination 3W LED illumination, Brightness Adjustable
Package 1pc/carton, 34cm*25cm*42cm, 6.5kgs, NW: 5kgs



Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY

Top of the Page



click here to fill out the Information Request Form
