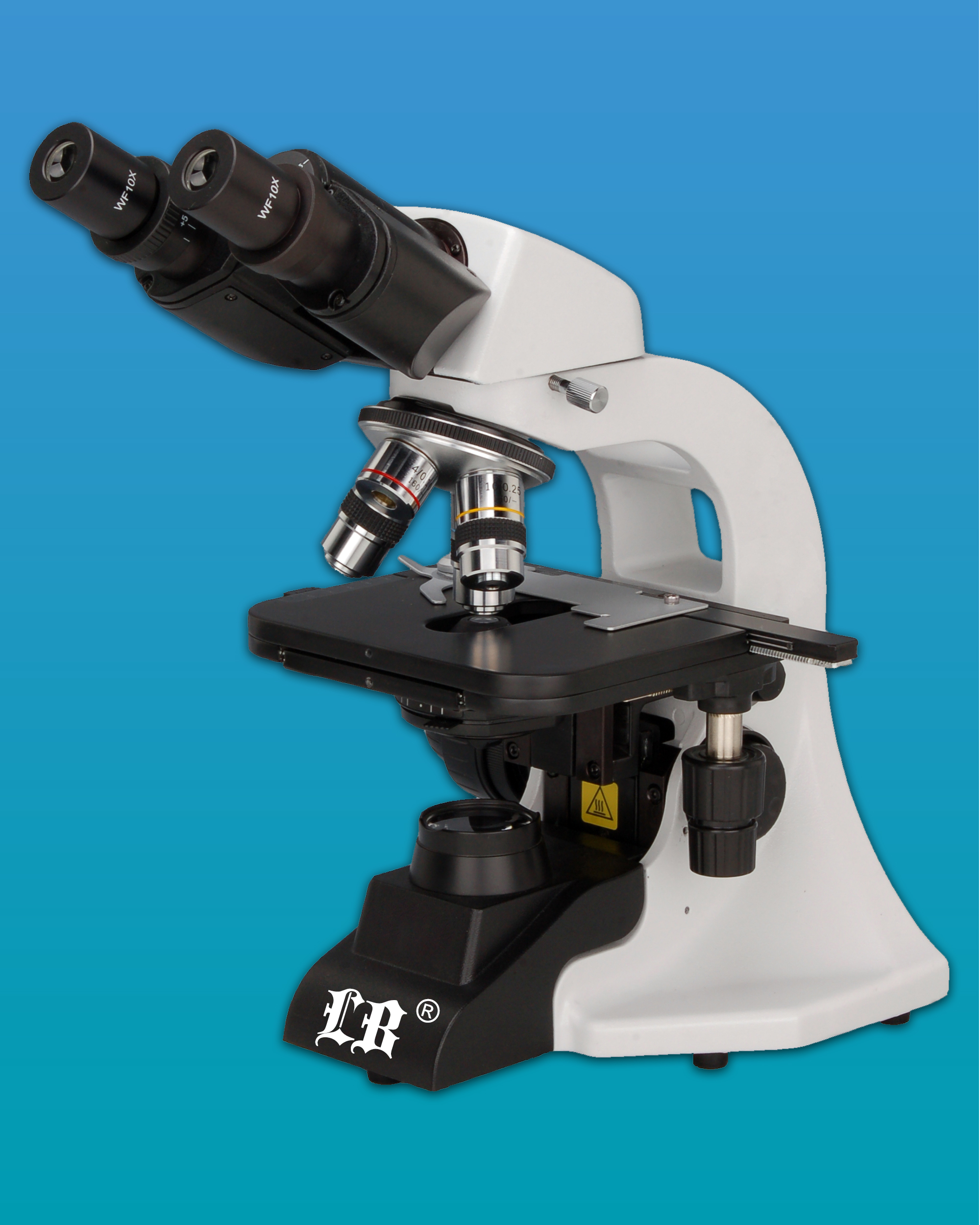

LB-204 Binocular Biological Microscope with Seidentopf Binocular Head, Wide Field Eyepiece, Backward Quadruple Nosepiece, Achromatic Objectives and LED Illumination

LB-204 Binocular Biological Microscope with Seidentopf Binocular Head, Wide Field Eyepiece, Backward Quadruple Nosepiece, Achromatic Objectives and LED Illumination is economic, practical and easy to operate. These microscopes adopt LED illumination, which save energy and have long working life, it is also very comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Built-in rechargeable battery is optional for outdoors operation or places that power supply is not stable.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • New machining facility and advanced alignment technology
  • Comfortable operation with updated and ergonomic design
  • LED light illumination, save energy and long working life
  • Compact and flexible, ideally suited for desktop, laboratory worktable
  • Eyepoint height and interpupillary distance can be adjusted to fit for observation.

Top of the Page

Technical Specifications

Applications

LB-204 Binocular Biological Microscope with Seidentopf Binocular Head, Wide Field Eyepiece, Backward Quadruple Nosepiece, Achromatic Objectives and LED Illumination are ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in clinics, hospitals, schools, academic labs and scientific research department.

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm,

Eyepiece

WF10×/18
P16×/12 (optional)

Objective

Achromatic Objective 4×, 10×, 40×, 100×(Oil)

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layer Mechanical Stage 132×142mm/ 75×40mm

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

Condenser

Abbe NA 1.25 with Iris Diaphram and Filter

Illumination

3W LED illumination, Brightness Adjustable
Halogen Lamp 12V/ 20W, Brightness Adjustable (optional)
Kohler illumination (optional)

Immersion oil

5ml Immersion oil

Optional Accessories

Phase Contrast Kit (optional)
Dark Field Attachment (optional)
Polarization Attachment (optional)
Rechargeable battery (optional)

Dimension & G.W.

32cm*26cm*44cm, 6kg

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
