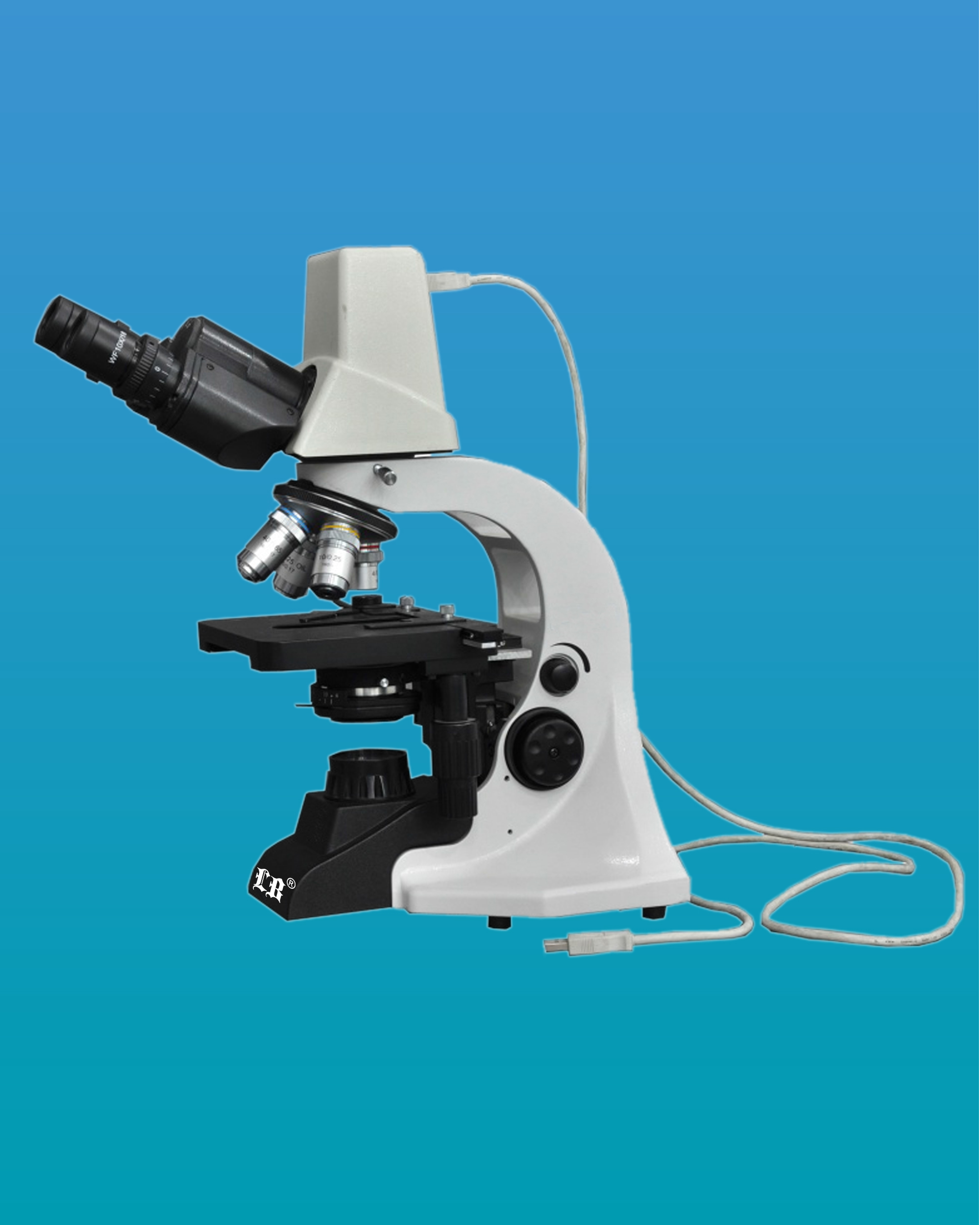

LB-205 Binocular Digital Microscope with Seidentopf Binocular
Head, Wide Field Eyepiece, Backward Quadruple Nosepiece,
Achromatic Objectives, LED Illumination and 3.2MP Camera and Software

LB-205 Binocular Digital Microscope with Seidentopf Binocular Head, Wide Field Eyepiece, Backward Quadruple Nosepiece, Achromatic Objectives, LED Illumination and 3.2MP Camera and Software comes with a 3.2 MP color image sensor and is economical, practical and easy to operate. It is widely used in educational, academic, agricultural and study field. It is connected to a computer via a USB cable. The software is powerful and easy to operate, it can view images at real time, take photos and videos and measurement without touch.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Built-in 3.2 Mega Pixel CMOS camera, vivid images and real color reproduction.
  • High definition images and videos, high frame rate.
  • Professional image analyze software supports Windows Vista / Win 7 / Win8 / Mac Operation Systems. The software can preview, take photos and video, do image processing and measurement.
  • Support Multi-language (Arabic, Chinese, English, French, Germen, Japanese, Polish and etc.).
  • Compact and flexible, ideally suited for desktop, laboratory worktable.

Top of the Page

Technical Specifications

Applications

LB-205 Binocular Digital Microscope with Seidentopf Binocular Head, Wide Field Eyepiece, Backward Quadruple Nosepiece, Achromatic Objectives, LED Illumination and 3.2MP Camera and Software microscope is ideally suited for school biological education and medical analyses area. We can use it to observe all kinds of slides. It can be widely used in clinics, hospitals, schools, academic labs and scientific research department.

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm

Camera System

Resolution

2048×1536 (3.2Mega Pixel)

Output Mode

USB2.0

Operation System

Window 2000/ XP/ Vista/ Win 7/ Win8/ Mac

Software

ScopeImage 9.0

Frame Rate

9 fps @ 2048×1536

Eyepiece

WF10×/ 18

(optional) P16×/ 12

Nosepiece

Backward Quadruple Nosepiece

Objective

Achromatic Objective 4×, 10×, 40×, 100×

Stage

Double Layers Mechanical Stage 132×142mm/ 75×40mm

Condenser

Abbe NA1.25 with Iris Diaphragm & Fliter

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

Illumination

3W LED illumination, Brightness Adjustable
Halogen Lamp 6V/ 20W, Brightness Adjustable (optional)
Kohler illumination (optional)

Optional accessories

Phase Contrast Kit (optional)
Dark-Field Attachment (optional)
Polarization Attachment (optional)
Rechargeable battery (optional)

Sample Images



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
