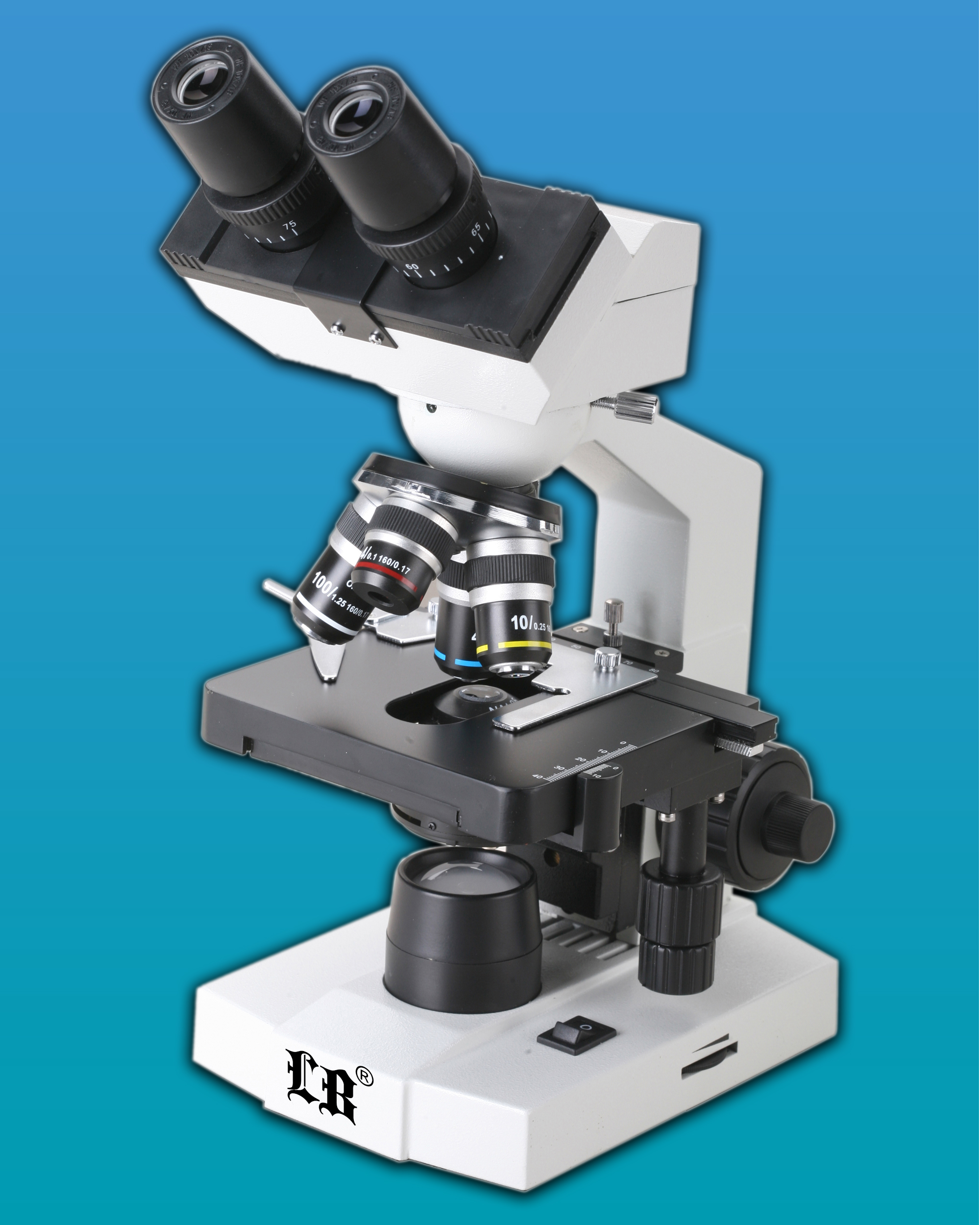

LB-212 Biological Digital Microscope with Wide Field Plane-Scope Eyepiece, Camera and Software (1.3MP)

LB-212 Binocular Digital Microscope with Wide Field Plane-Scope Eyepiece, Camera and Software (1.3MP) features a built in 1.3 MegaPixel Digital Microscopy Camera and professional software offering high resolution and user friendly operation. This combination of microscope, digital imaging system and software is easy to operate offering outstanding performance. It can take photos, videos and do measurement functions. The objectives with 4 Hole Nosepiece are 4x, 10x, 40x and 100x for clear observation. Illumination is LED with variable light intensity. The microscope is primarily designed for students for image capturing and distant sharing. This unique combination of microscope, image system and software makes the LB-212 microscopy system a professional tool for education applications. This microscope also provides a cost effective solution for universities, computer interactive laboratories and clinical environments.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • With 1.3 Megapixel CMOS image sensor, the output images have high Signal to Noise Ratio;
  • High definition images and videos, high frame rate;
  • Professional software of real-time review, take photos and videos, measurement.
  • Easy to operate;
  • LED light illumination, saves energy;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;

Top of the Page

Technical Specifications

Applications

LB-212 Binocular Digital Microscope with Wide Field Plane-Scope Eyepiece, Camera and Software (1.3MP) is ideally suited for school biological education and medical analyses area. We can use it to observe all kinds of slides. It also has the applications to examine coins, stamps, PC boards, insects, and other objects, especially at the lower powers.

Binocular Head

Binocular eyepiece, 45º Inclined, 360º Rotatable with built-in CMOS camera, 1/3” 1.3MP, resolution: 1280×1024, USB2.0 Connection.

Software

ScopeImage 9.0 for capturing image and showing live video on PC screen, Saving images as BMP, JPG files, software also has previewing, video, measuring comparing, saving and deleting functions. Range of viewing field: >100%

Eyepiece

Wide Field Plane-Scope Eyepiece: WF10×/18 with diopter adjustment

Objective

Achromatic Objective: 4×, 10×, 40×(S), 100×(S, Oil)

Stage

Double Layers Mechanical Stage: 115×125mm, Moving Range X-Y:70×20mm, with Ø2-Ø30mm Iris Diaphragm And Ø32 Filter;

Condenser

ABBE Condenser: N.A. 1.25(Φ2-Φ30mm) with Frosted Filters

Focus

Coaxial Coarse And Fine Focusing Adjustable

Illumination

With an AC adapter, Built-in LED Lamp

System requirement

•      PC: Windows XP or above, Mac OS X.
•      CPU 200 Mhz or above
•      RAM 128 MB or above
•      Hard disk 500 MB or above
•      CD-ROM drive
•      USB plug

Accessories

Packed in carton, with operation manual, dust cover, AC adapter and USB cable.

Optional

Rechargeable battery (only for LED illumination)

Dimension & G.W

29cm × 23cm × 42cm, 5kg

Packing Carton, 4 sets/carton: 29cm × 88cm × 42cm, 20kg



Sample Images

The following specimen images are taken with LB-212.

Accessories and Package

Standard Accessories Included with the Microscope

Digital Camera – built-in

Filter Wheel–built-in 6 position

10x eyepiece

Condenser

4x Objective Lens

USB Cable

10x Objective Lens

AC Adapter

40x Objective Lens

Dust Cover

100x Objective Lens

LED Illuminators


ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
