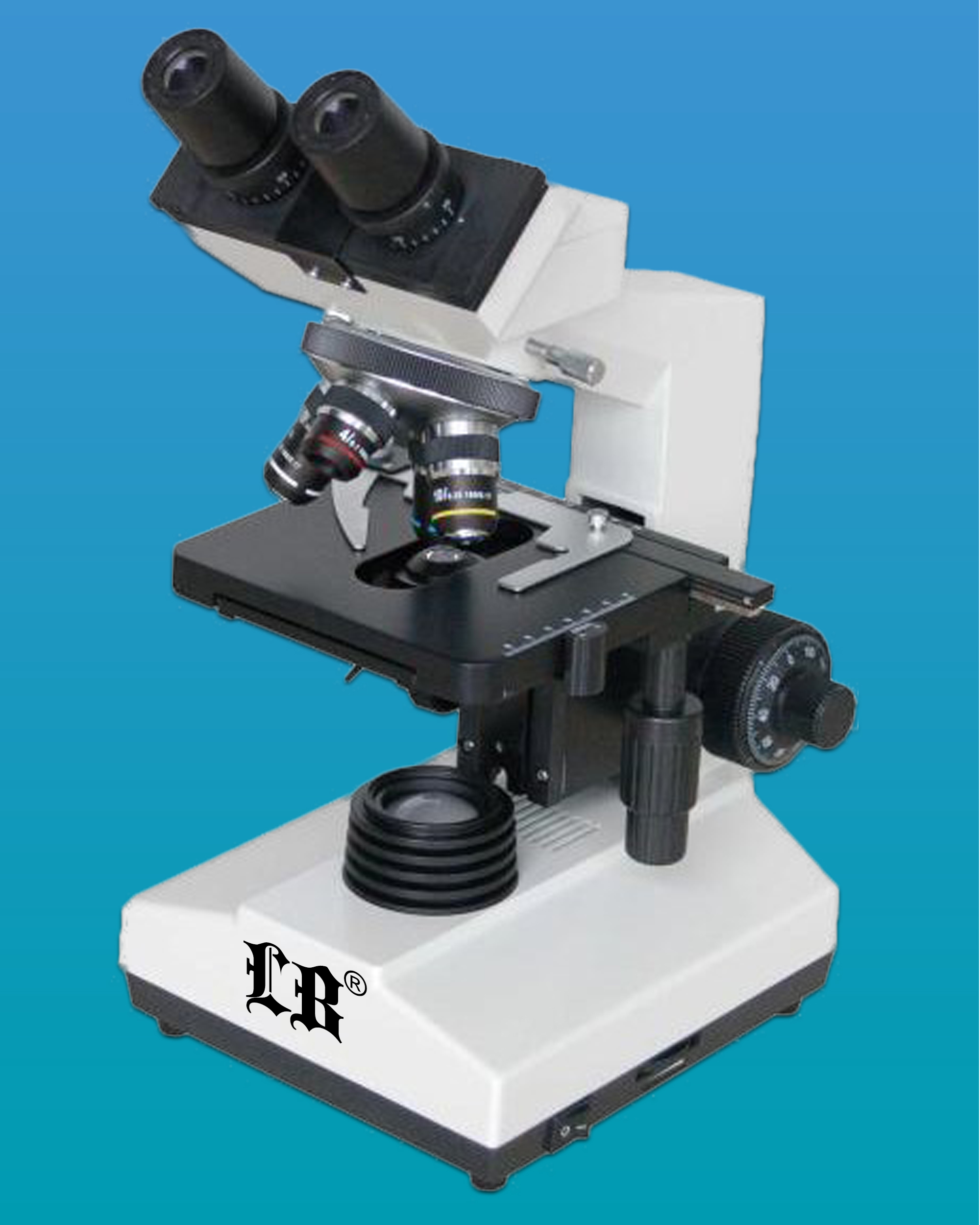

LB-213 Binocular Biological Microscope with Dark Field Attachment and Phase Contrast Kit (Anti-Fungus)

LB-213 Binocular Compound Microscope with Dark Field Attachment and Phase Contrast Kit (Anti-Fungus) is an advanced biological microscope, with a Phase contrast kit that reveals many cellular structures that are not visible with simple bright field microscopes and a Dark field attachment that is used for getting high contrast images. It comes with precision machining equipment and advanced alignment technology.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features

  • New machining facility and advanced alignment technology;
  • With complete functions and outfit of binocular microscope;
  • Comfortable operation with updated and ergonomic design;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;
  • Interpupillary distance can be adjusted to fit for observation.
  • Phase contrast kit attachment.
  • Dark field attachment.

Top of the Page

Technical Specifications

Applications

LB-213 Binocular Compound Microscope with Dark Field Attachment and Phase Contrast Kit (Anti-Fungus) is an ideal instrument in the biological, histological, and pathological fields and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Viewing Head:

Sliding Binocular Head Inclined at 45°, 360° Rotatable; 55-75mm interpupillary distance. Anti-Fungus.

Eyepiece:

Wide Field Eyepiece WF10×/ 18

Nosepiece:

Quadruple Nosepiece

Objective:

Achromatic Objective 4×, 10×, 40×, 100×
(Can be supplied with plan achromatic objectives)

Total Magnifications:

With 10x eyepiece: 40×, 100×, 400×, 1000×

Stage:

Double Layer Mechanical Stage 140×140mm/ 75×50mm

Focus:

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm

Condenser:

Abbe NA 1.25 with Iris Diaphragm & Filter

Illumination:

LED Illumination 3W, Brightness Adjustable
Plan-concave Mirror
Kohler illumination (optional)

Body / Power:

Body firm backing of Aluminum and built in power supply 110-240V

Supplied With: Dust cover, green filter, immersion oil and user manual

Phase Contrast kit:

Simple phase contrast kit

Dark Field Attachment: Dry Dark field attachment

Dimension & G.W.:

33cm×28cm×44cm×, 9 kg

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
