Labomed Inc.

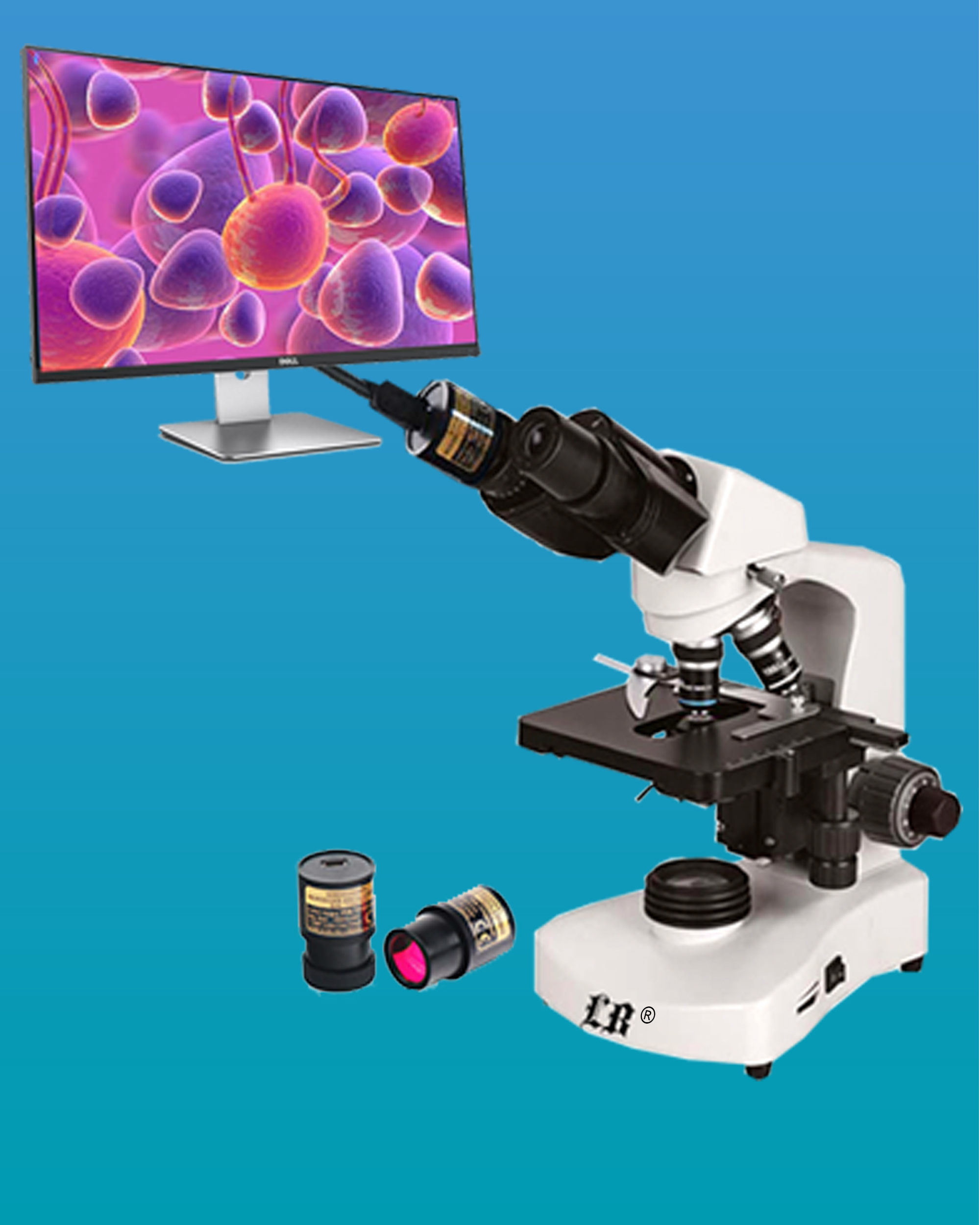

LB-229 Affordable Digital Compound Medical and Educational Microscope

(monitor must be purchased locally)

PDF Brochure - Page 1

PDF Brochure - Page 2



LB-229 Affordable Digital Compound Medical and Educational Microscope is an economic, practical and easy to operate compound microscope, this microscope is widely used in the medical and educational fields, linking to the monitor by:

LC-27 USB2.0 CMOS Eyepiece Camera is an economic version with simple and compact structure CMOS eyepiece camera (digital eyepiece). USB2.0 is used as the data transfer interface. LC-27 comes with a high-speed USB2.0 interface and high frame rate video display, which keep the screen smooth without interruption. LC-27 comes with an advanced video & image processing application ImageView. The LC-27 can be widely used to transform the monocular or binocular student microscopes to a digital microscope. With a 23.2 to 30mm or 23.2 to 30.75 convert ring, the LC-27 camera can also change the stereo microscope to digital stereo microscope.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • New machining facility and advanced alignment technology;
  • With complete functions and outfit of binocular microscope;
  • Comfortable operation with updated and ergonomic design;
  • LED light illumination, saves energy;
  • Compact and flexible, ideally suited for desktop, laboratory worktable;
  • Eyepoint height and interpupillary distance can be adjusted to fit for observation.

LC-27

  • Microscope eyepiece camera with 23.2 diameter and compact size.
  • Easy to extend to C or CS- Mount camera with high quality lens (optional).
  • High-quality camera with Aptina CMOS sensor.
  • Auto white balance and auto-exposure; Brightness, contrast, chroma and saturation can be adjusted.
  • High-speed U SB2.0 interface and high frame rate video display keep the screen smooth without interruption.
  • With advanced video & image processing application ImageView.
  • Providing Windows/Linux/Mac OS multiple platforms SDK.
  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API.




Top of the Page

Technical Specifications

Applications

LB-229 Affordable Digital Compound Medical and Educational Microscope is ideally suited for the school biological education and medical analyses areas. We can use it to observe all kinds of slides. It can be widely used in clinics, hospitals, schools, academic labs and scientific research departments.

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm

Eyepiece

WF10×/18, P16×/11 (optional) with diopter adjustment

Objective

Achromatic Objective 4×, 10×, 40×, 100×

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layer Mechanical Stage 132×142mm/ 75×40mm

Focusing

Coaxial Coarse & Fine Adjustment, Moving Range 24mm, Fine Division 0.004mm

Condenser

Abbe NA 1.20 with Iris Diaphragm & Filter

Illumination

LED 3W, Brightness Adjustable
Kohler illumination (optional)

Dimension & G.W.

39.5cm*26.5cm*50cm, 7kg

Immersion Oil 5 ml

LC-27

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

Auto White Balance

Color Technique

N/A

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System

Natural

Operating Environment

Operating Temperature(in Centigrade)

-10~ 50

Storage Temperature(in Centigrade)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
OSx(Mac OS X)
Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB Port:USB2.0 High-speed Port

Display:17” or Larger

CD-ROM

Accessories

Standard Camera Packing List

Carton L:52cm W:32cm H:33cm (50pcs, 12~17Kg/carton), not shown in the photo

Gift box L:14.5cm W:9.5cm H:6.0cm (0.15~0.16Kg/box)

USB2.0 eyepiece camera

High-Speed USB2.0 A male to mini B 5-pin male gold-plated connectors cable /1.5m

CD (Driver & utilities software, 8cm)

Optional Accessory (must be purchased separately)

C-Mount Adapter Housing:108027 (HS502)

108015 (Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

108016 (Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

108017 (Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube

Calibration kit

106011/TS-M1 (X=0.01mm/100Div.);
106012/TS-M2 (X,Y=0.01mm/100Div.);
106013/TS-M7 (X=0.01mm/100Div., 0.10mm/100Div.)



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
