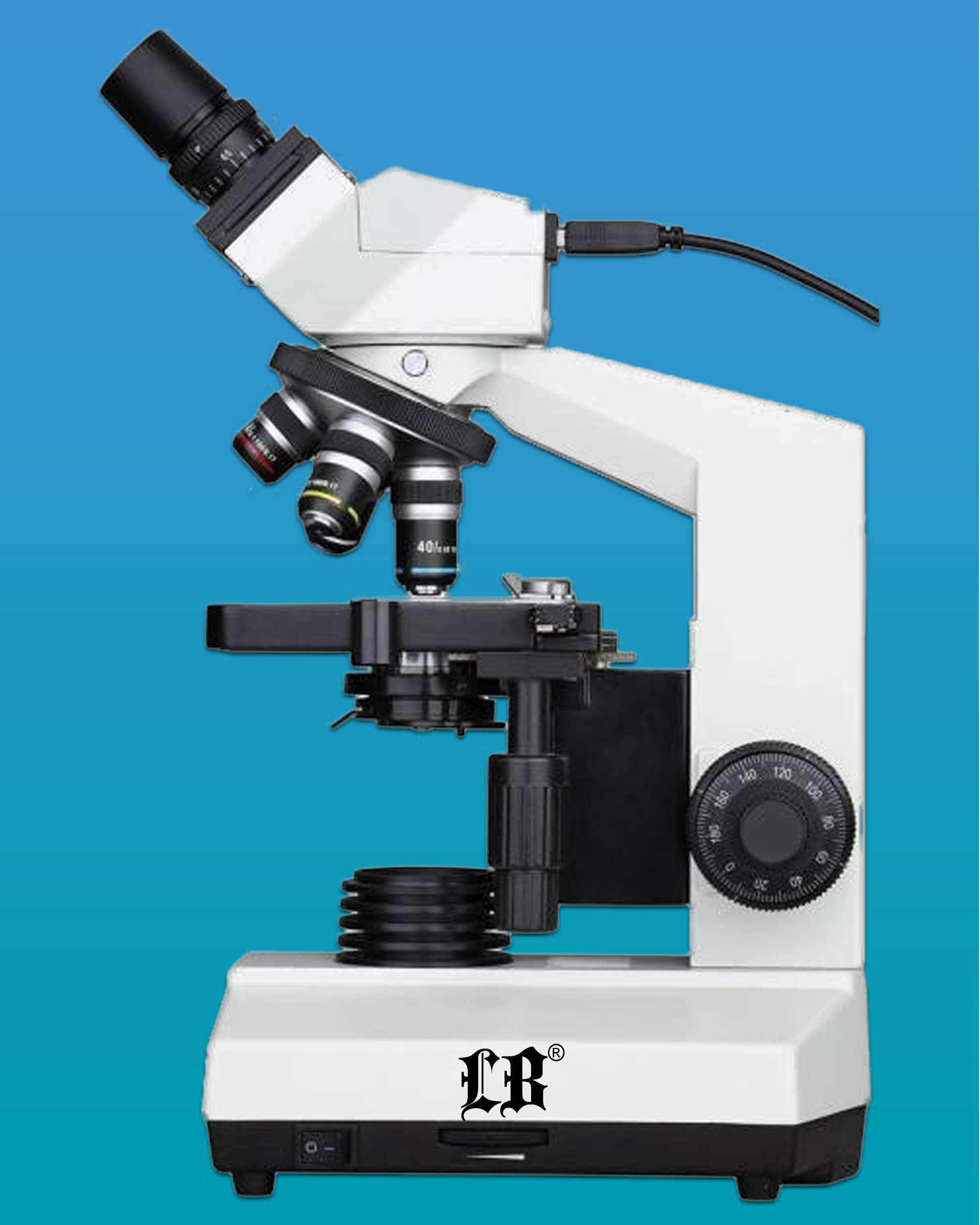

LB-230 Binocular Biological Digital Microscope
(Anti-Fungus) with Wide Field, Achromatic Objectives, Camera and Software (1.3MP) and LED Illumination

LB-230 Binocular Biological Digital Microscope (Anti-Fungus) with Wide Field, Achromatic Objectives, Camera and Software (1.3MP) and LED Illumination
With precision machining equipment and advanced alignment technology, LB-230 digital biological microscope is a classical biological microscope. With a built-in 1.3MP camera and software, this microscope can take images, take videos and make measurements. It is a very good assistant for your lab work and education.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Integrated digital microscope, resolution 1280×1024 (1.3 MP), can take pictures, videos and make measurements.
  • USB2.0 output, plug and unplug freely.
  • Cost effective, price is much lower than a binocular biological microscope + a digital camera.
  • Supports WINDOWS 2000/XP/VISTA/Win 7 Operation system, equipped with powerful software.
  • Economical features, widely used in academic demonstration and health system.

Top of the Page

Technical Specifications

Applications

LB-230 Binocular Biological Digital Microscope (Anti-Fungus) with Wide Field, Achromatic Objectives, Camera and Software (1.3MP) and LED Illumination is an ideal instrument in the biological, histological, and pathological fields and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

THIS MICROSCOPE LB-230 CAN USE A DARK FIELD CONDENSER, DRY OR OIL, ON REQUEST.

Viewing Head

Sliding Binocular Head Inclined at 45°, 360° Rotatable; 55-75mm interpupillary distance. Anti-Fungus.

Camera System

Resolution: 1280×1024, 1.3 MP CMOS sensor
Frame Rate of Built-In Camera: 15fps
Output: USB2.0
Software: Scope Image Plus
Range of Viewing Field: > 75%

Eyepiece

Wide Field Eyepiece WF10×/ 18

Nosepiece

Toward Quadruple Nosepiece

Objective

Achromatic Objective 4×, 10×, 40×, 100×
(Can make 5 objectives by request, adding 20× or 60× objectives is optional) (Can be supplied with plan achromatic objectives)

Total magnifications

With 10x eyepiece: 40×, 100×, 400×, 1000×

Stage

Double Layer Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Moving Range 28mm, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per rotation

Condenser

Abbe NA 1.25 with Iris Diaphragm & Filter

Illumination

LED Illumination 3W
Built-in Illumination, 6V 20W Halogen light, intensity adjustable (optional)

Plan-concave Mirror
Kohler illumination (optional)



Body / Energy

Body firm backing of Aluminum and built in power supply 110-240V

Supplied with

dust cover, green filter, immersion oil and halogen light source parts and operating manual

Dimension & G.W.

33cm×28cm×44cm×, 9 kg

Optional
(must be purchased separately)

Can be supplied with an epi-flourescent attachment

THE LB-230 CAN USE A DARK FIELD CONDENSER, DRY OR OIL, ON REQUEST.

Sample Images

The following specimen images are taken with LB-230.

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
