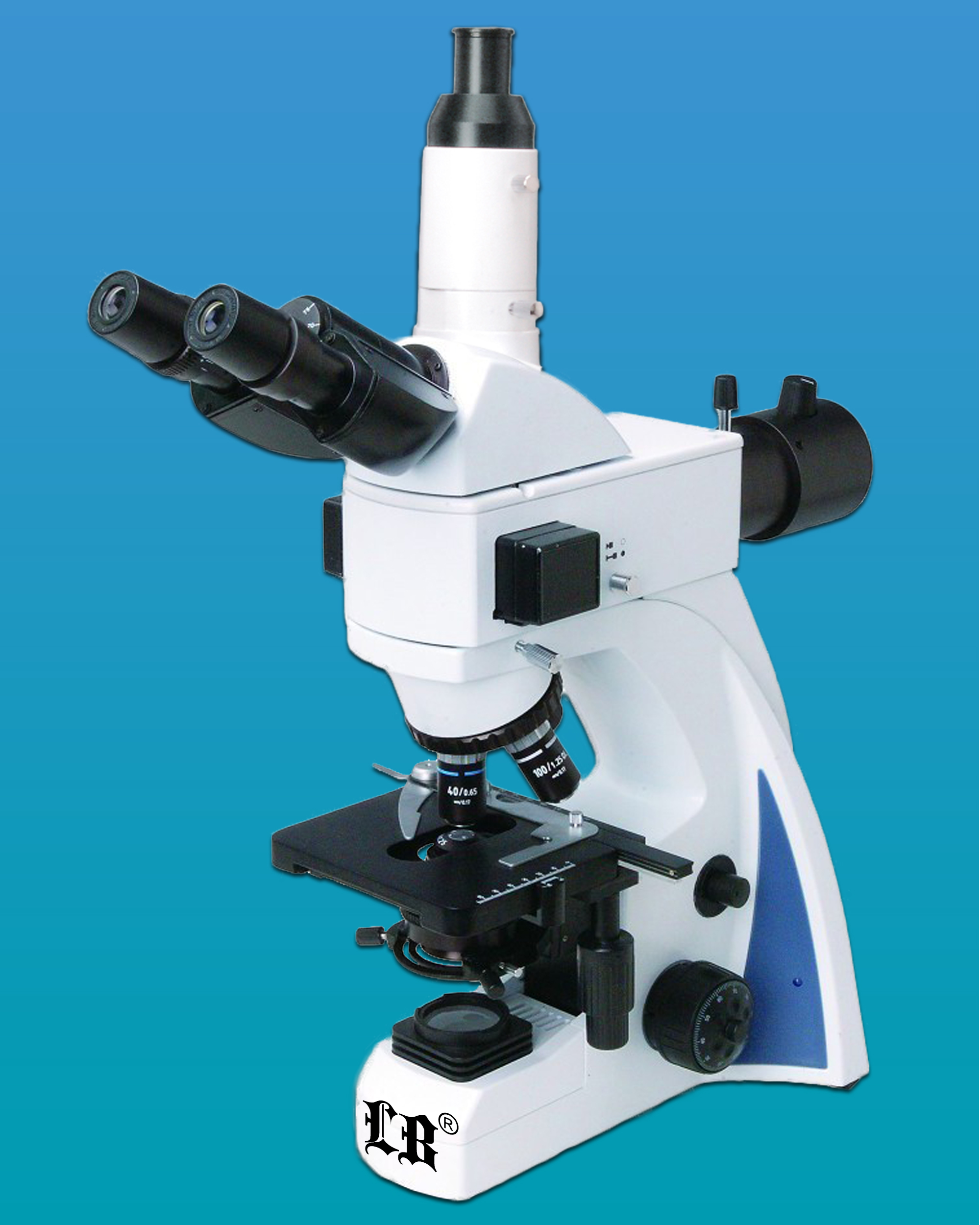

LB-245 Trinocular LED Fluorescent Biological Microscope with Seidentopf Trinocular Head, Wide Field, Epi-Fluorescent Attachment and Infinite Semi-Plan Achromatic Objectives and Infinite Optical System

LB-245 Trinocular LED Fluorescent Biological Microscope with Seidentopf Trinocular Head, Wide Field, Epi-Fluorescent Attachment and Infinite Semi-Plan Achromatic Objectives and Infinite Optical System (Infinity Color Corrected System) are newly developed microscopes with an infinity color corrected system, the microscopes use LED as the light source, the life span of the LED lamp is much longer than mercury lamp, the performance is also better.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Excellent fluorescent image with infinitive optical system.
  • LED illumination with 50,000 hours life span.
  • No need for cooling system and protection device due to LED cold light source.
  • 465-476nm excited wavelength with high SNR.
  • Convenient to use, no need to warm-up.
  • More fluorescent filters are available for different applications.

Top of the Page


Technical Specifications

Applications

LB-245 Trinocular LED Fluorescent Biological Microscope with Seidentopf Trinocular Head, Wide Field, Epi-Fluorescent Attachment and Infinite Semi-Plan Achromatic Objectives and Infinite Optical System is used to study the absorbing, transportation, chemicals distribution and positioning in cells. It is widely used in disease examination, immune diagnosis and life science areas.

Optical System

Infinite Optical System

Viewing Head

Seidentopf Trinocular Head Inclined at 30°,
Interpupillary Distance 48-75mm

Eyepiece

Wide Field Eyepiece WF10×/18 with diopter adjustment

Nosepiece

Backward Quadruple Nosepiece

Objective

Infinite Semi-plan Achromatic Objective 4× 10× 40× 100×

Condenser

Sliding-in Centerable Condenser NA 1.25

Focusing

Coaxial Coarse & Fine Adjustment System, Fine Division 0.002mm, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.2mm per rotation, Moving Range 20mm

Stage

Double Layers Mechanical Stage 140×140/ 75×50 mm

Illumination

LED Illumination
Halogen Lamp 6V/20W (optional)

Reflected Light Source



Excitation

Dichroic Mirror

Barrier Filter

Blue excitation

BP460~490

DM505

BA515

Green excitation

BP510~550

DM570

BA590

Lamp

3W LED Lamp(465-476nm)

Immersion Oil

Fluorescent Free Oil
