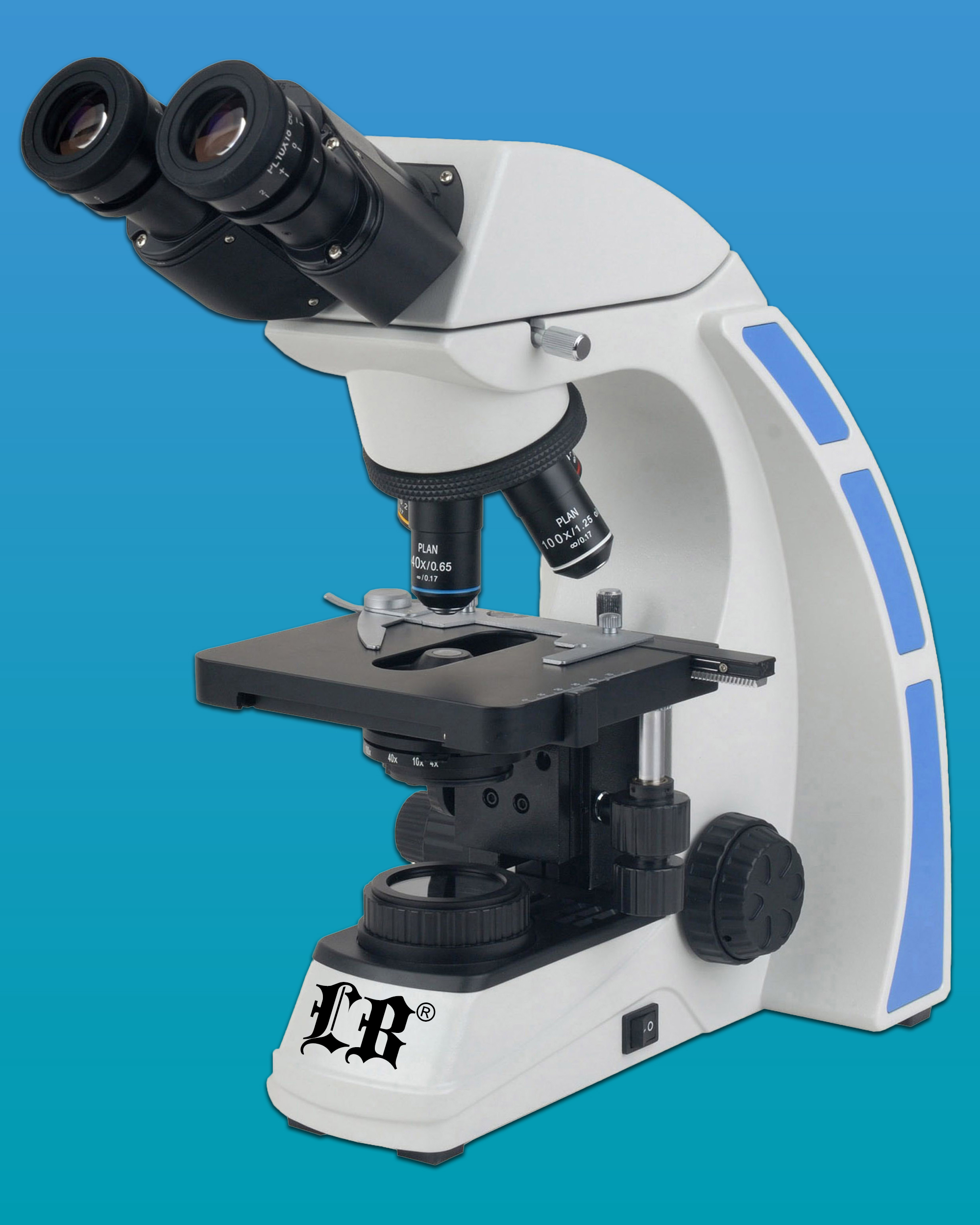

LB-246 Biological Trinocular Microscope
with Six Infinite Plan Achromatic Objectives

LB-246 Trinocular Biological Microscope with Wide Field, LED Illumination and Six Infinite Plan Achromatic Objectives (4×, 10×, 20×, 40×, 60×, 100×) (Infinity Color Corrected System) are classical biological microscopes, the microscopes feature ingenious stand, backward nosepiece, and flexible structure. It is widely used in biological, pathological, bacterial, histological, immune and genetic fields. With a microscope adapter, a digital camera (or digital eyepiece) can be plugged into the trinocular tube or the eyepiece tube. Nice shape, excellent optical system and flexible outfit make you enjoy the microscope.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Convenient and Comfortable Observing with High Point and Wide Field Eyepiece
    EW10×/ 20.
  • Sharp and Bright Image with Semi-plan Objectives.
  • Suitable for Different Region Power, supplied with 100V-240V Multi-input Rating.

Top of the Page

Technical Specifications

Applications

LB-246 Trinocular Biological Microscope with Wide Field, LED Illumination and Six Infinite Plan Achromatic Objectives (4×, 10×, 20×, 40×, 60×, 100×) (Infinity Color Corrected System) are ideal instruments for the biology, bacteriology, immunology, pharmacology, and related fields. It is widely used in the academic, medical and clinical areas.

Viewing Head

Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, interpupillary distance 52-75mm

Eyepiece

Wide Field Eyepiece EW10×/ 20

Objective

Infinite Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

Condenser

NA 1.25 Abbe Condenser with lris Diaphragm and Filter

Illumination

LED Illumination, Brightness Adjustable

Filter Blue, Green Filter
Dimension & G.W. 35cm*31cm*57cm, 9.5kg

OBJECTIVE SPECIFICATIONS:

Magnification

Numerical Aperture
(NA)

Thickness of coverslip
(mm)

Working distance
(mm)

Type

0.10

0.17

15.8

Dry

10×

0.25

0.17

12.2

Dry

20×

0.40

0.17

5.0

Dry

40×

0.65

0.17

0.37

Dry, Spring loaded

60×

0.8

0.17

0.13

Dry, Spring loaded

100×

1.25

0.17

0.13

Oil, Spring loaded

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
