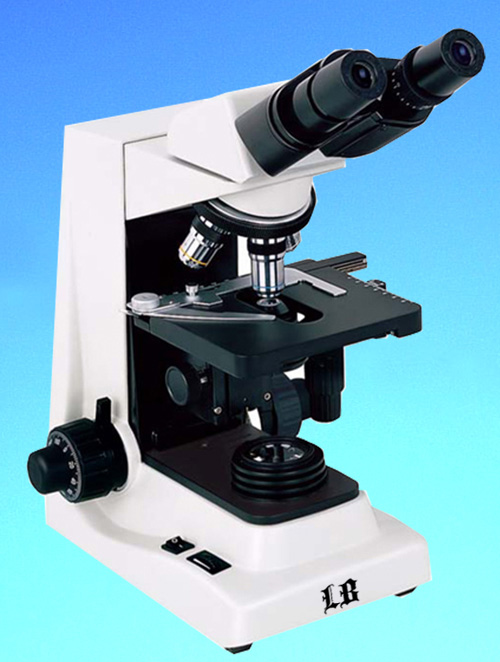

LB-260 Binocular Medical Microscope

This microscope is specially designed for medical areas. It adopts a high-brightness optical system, overall structure and reasonable man-machine design. With precision machining equipment and advanced alignment technology, a variety of accessories make it an ideal analyzing instrument of biology, bacteriology, histology, immunizations and pharmacy.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • High-brightness optical system, the overall structure and reasonable man-machine design.
  • A variety of accessories make it an ideal study and analysis instrument for biology, bacteriology, histology, immunizations and pharmacy.


Top of the Page

Technical Specifications

Applications

This microscope is an ideal instrument for the biological, histological, pathological, bacteriology, immunization, and pharmacy fields, and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

THIS MICROSCOPE LB-260 CAN USE A DARK FIELD CONDENSER, DRY OR OIL, ON REQUEST.

Viewing Head

Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable

Eyepiece

Wide Field Eyepiece WF10×/ 18
Wide Field Eyepiece WF16×/ 11

Objective

Achromatic Objective 4×, 10×, 40×, 100×
(Can make 5 objectives by request, adding 20× or 60× objectives is optional)

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Condenser

NA 1.25 Abbe Condenser with lris Diaphragm and Filter, Rack & Pinion Adjustment

Focusing

Coaxial Coarse & Fine Adjustment System, Range 28mm, Fine Division 0.002mm

Illumination

LED Illumination
Halogen Lamp 6V/ 20W (optional), Brightness Adjustable

Kohler Illumination(optional)

Filters Blue and Green filters, dust cover, immersion oil
Tube Length 160mm
Dimension & G.W. 38cm*29cm*61cm, 12kg
OPTIONAL Turret Phase Contrast Kit

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
