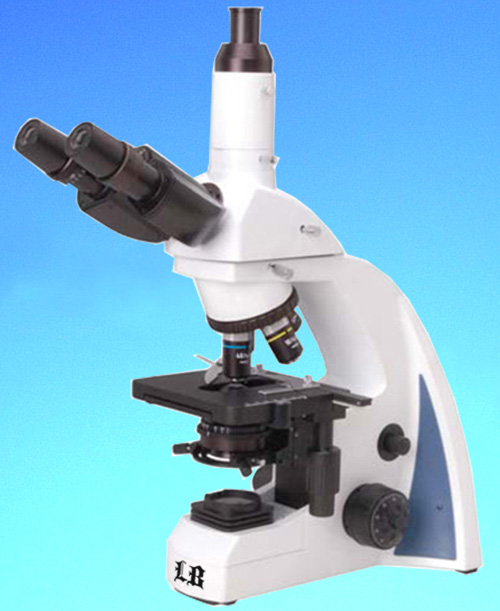

LB-261 Trinocular Biological Microscope
with Infinite Semi-Plan Optical System

LB-261 Trinocular Biological Microscope with Wide Field and Infinite Semi-Plan Optical System (Infinity Color Corrected System) With precision machining equipment, advanced alignment technology, and an infinity color corrected system, LB-261 Trinocular Biological Microscope is a high-tech biological microscope. With a trinocular head, digital cameras can be added to this microscope for digital image capture and analysis.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.

Features


Top of the Page

Optional Accessories
(must be ordered separately)

Technical Specifications

Applications

This trinocular microscope is an ideal instrument for the biological, histological, and pathological fields, and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Viewing Head

Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm

Eyepiece

Wide Field Eyepiece WF 10×/18

Objective

Infinitive Semi-plan Achromatic Objectives 4×, 10×, 40×, 100×
(Can make 5 objectives by request, adding 20× or 60× objectives is optional)

Nosepiece

Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm

Condenser

Sliding-in condenser NA1.25

Focusing

Coaxial Coarse & Fine Adjustment, Moving Range 20mm

Illumination

6V/ 20W Halogen Lamp, Brightness Adjustable, Kohler illumination (optional)

Package

1pc/carton, 35cm*35.5cm*55.5cm, gross weight: 12kg

Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY

click here to fill out the Information Request Form
