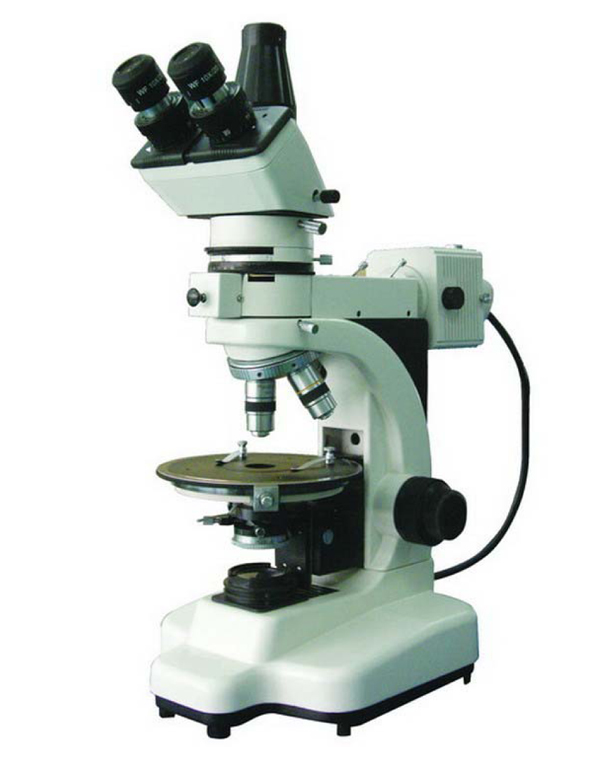

LB-509 Trinocular Transmission and Reflection Polarizing Microscope
LB-509 Trinocular Transmission and Reflection Polarizing Microscopes are specifically designed for university colleges, geology, mining, metallurgy, pharmacy and other institutions for teaching, research and production. It can be used to analyze and identify various minerals and specimens, it can also be used to inspect chemical fiber, semiconductor products and medicines. Users can do single-polarized observation, orthogonal polarization observation, conoscope observation and photography with the microscope. Gypsum λ specimen, mica λ/ 4 specimen, quartz wedge specimen and moving stage, wrenches come with the microscope. This microscope is a set of powerful and good quality polarizing microscope.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
Features
- Trinocular head, digital cameras can be easily used on this microscope for image and video taking.
- Gypsum λ specimen, mica λ/ 4 specimen, quartz wedge specimen are equipped.
- Reflected illumination makes this microscope powerful for geology, mining, metallurgy, pharmacy and other observation.
|
Top
of the Page
Technical Specifications
Applications
LB-509 Trinocular Transmission and Reflection Polarizing Microscopes are specifically designed for university colleges, geology, mining, metallurgy, pharmacy and other institutions for teaching, research and production.
Technical Specifications
Viewing Head |
Sliding trinocular viewing head, Inclined at 30° |
Eyepiece |
Eyepiece WF10X/20
Eyepiece WF10X/ 20 with graticule
Eyepiece WF 10X/20 with scale of cross-line |
Objective |
Strain free achromatic objective 4X, 10X
Strain free achromatic objective(Transmitted)25X, 40X, 63X
Strain free plan achromatic objective(Reflected)25X, 40X, 63X
Lamp adjustment objective |
Nosepiece |
Backward quadruple nosepiece, Center adjustable |
Analyzer |
Rotatable analyzer with gradation 0°-90° |
Bertrand Lens |
Bertrand lens, Sliding in/out of optical path |
Optical Compensator |
λ Slip(first class red), 1/ 4λ Slip, Quartz Wedge |
Revolving Round Stage |
Diameter Φ160mm, Graduated in 1°Increments, Minimum resolution 6’ when using vernier scale |
Condenser |
NA1.25 Abbe condenser with iris diaphragm & filter |
Focusing |
Coaxial coarse & fine adjustment, Range 28mm, Fine division 0.002mm |
Polarizer |
360° Rotatable, Located on the top of collector |
Illumination |
12V/ 20W Halogen lamp, Brightness adjustable(Transmitted illumination) |
12V/ 50W Halogen lamp, Brightness adjustable(Reflected illumination) |
Accessories |
Mechanical stage, Moving range 30X40mm |
