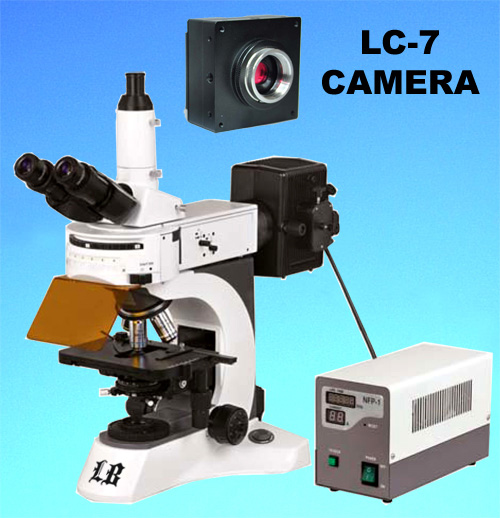

LB-703 Trinocular Upright Flourescent Biological Digital Microscope + LC-7 Digital Camera with Infinite Optical System

LB-703 Trinocular Upright Fluorescent Biological Digital Microscope with Extra Wide Field, LC-7 Digital Camera and Infinite Plan Optical System (Infinity Color Corrected System) uses ultraviolet as the light source, objects which are radiated then fluoresce, and then the shape of an object and its location can be observed under the microscope.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Excellent fluorescent image with high resolution fluorescent objectives.
  • Protect the light leak with advanced lamp housing.
  • Perfect image with infinite plan fluorescent objective.
  • More stable power supply, digital display and timer.




Top of the Page



Technical Specifications

Applications

LB-703 Trinocular Upright Fluorescent Biological Digital Microscope and LC-7 Digital Camera with Infinite Optical System is used to study the absorbing, transportation, chemical distribution, and positioning in cells. It is widely used in disease examination and immune diagnosis.

Optical System

Infinite Optical System

Viewing Head

Seidentopf Trinocular Head Inclined at 30°,Interpupillary Distance 48-75mm

Eyepiece

Extra Wide Field Eyepiece EW10×/22

Nosepiece

Backward Quintuple Nosepiece

Objective

Infinite Plan Achromatic Objective 4× 10× 40× 100×

Condenser

Swing Condenser NA 0.9/ 0.25

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.001mm

Stage

Double Layers Mechanical Stage 185×142/ 75×55 mm

Kohler Illumination

External Illumination, Aspherical Collector, Halogen Lamp6V/ 30W

Reflected Light Source



Excitation

Dichroic

Mirror

Barrier

Filter

Blue excitation

BP460~490

DM500

BA520



Green excitation

BP510~550

DM570

BA590



Lamp

100W HBO Ultra Hi-voltage Spherical Mercury Lamp

Protection barrier

Barrier to Resist the Ultraviolet Light

Power Supplier

Power Supplier NFP-1, 220V/ 110V interchangeable , Digital Display

Immersion Oil

Fluorescent Free Oil

Filter ND25 Filter (Optional - must be purchased separately)

DIGITAL CAMERA LC-7 INCLUDED

Model

LC-7

Description

USB2.0 Color CCD 1.4MP digital camera

Image Sensor

1/2 inch, Color 1.4MP Sony CCD ICX205AK

Pixel Size

4.65μm×4.65μm

G Sensitive

400mV

Spectral Response

400nm~1000nm

Scan Mode

Progressive Scan

Exposure Mode

Electronic rolling shutter

Max Resolution

1360H × 1024V

Frame Rate

7fps@1360×1024

Lens Interface

Standard C-mount

Low-speed Readout

Yes

White Balance

Auto / Manual

Exposure Control

Auto / Manual

Exposure Time

1ms~60sec

Image Output

USB2.0, 480Mb/s

Power

USB2.0 Power Supply, 500mW

Parameters Control

Image size, Contrast, brightness, R.G.B gain, exposure time

Software Function

Image display, image processing, video

Working Temperature

0°C~60°C

Storage Temperature

-20°C~70°C

Working Humidity

10-90%

Accessories

Include C-mount, 1.5m USB cable, 1 CD with software and SDK., Manual

Camera Net Weight

200g

Camera Dimension

62mm×62mm×45mm (length × width × height)

Box Dimension

118mm×108mm×96mm (length × width × height)



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
