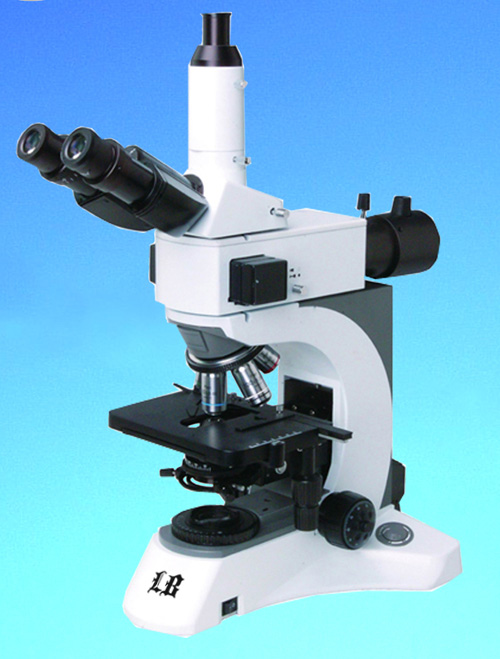

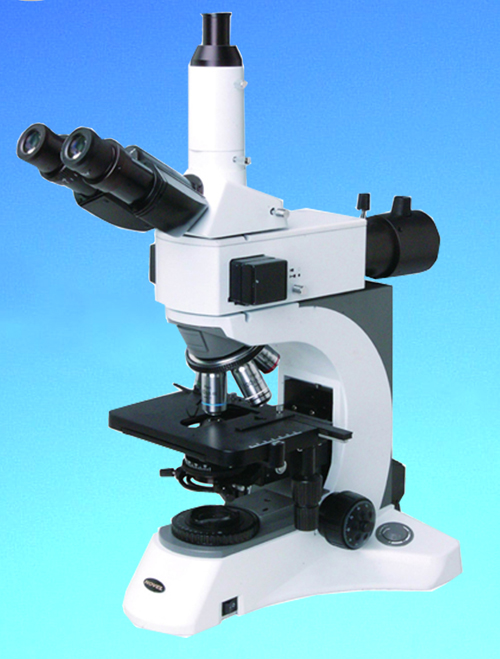

LB-704 Trinocular LED Flourescent Biological Microscope with Infinite Optical System

LB-704 Trinocular LED Fluorescent Biological Microscope with Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) is a newly developed microscope, the microscope uses LED as the light source, the life span of the LED lamp is much longer than mercury lamp, the performance is also better.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Excellent fluorescent image with infinitive optical system.
  • LED illumination with 50,000 hours life span.
  • No need for cooling system and protection device due to LED cold light source.
  • 465-476nm excited wavelength with high SNR.
  • Convenient to use, no need warm-up.
  • More fluorescent filters are available for different applications.

Top of the Page

Technical Specifications

Applications

LB-704 Trinocular LED Fluorescent Biological Microscope with Infinite Optical System is used to study the absorbing, transportation, chemicals distribution and positioning in cells. It is widely used in disease examination, immune diagnosis and life science areas.

Optical System

Infinite Optical System

Viewing Head

Compensation Free Trinocular Head, Inclined at 30°,Interpupillary Distance 48-75mm

Eyepiece

Wide Field Eyepiece WF10×/22

Nosepiece

Backward Quintuple Nosepiece

Objective

Infinite Plan Achromatic Objective 4× , 10×, 40×, 100×



Condenser

Swing Condenser NA 0.9/0.25

Focusing

Coaxial coarse & fine adjustment, Fine division 0.001mm

Stage

Double Layers Mechanical Stage 185×142/ 75×55 mm

Illumination

External Kohler illumination, Aspherical collector, Halogen lamp 6V/30W

Reflected Light Source



Excitation

Dichroic Mirror

Barrier Filter

Blue excitation

BP460~490

DM505

BA515

Green excitation

BP510~550

DM570

BA590

Lamp

3W LED Lamp (465-476nm)

Immersion Oil

Fluorescent Free Oil

Technical Specifications

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
