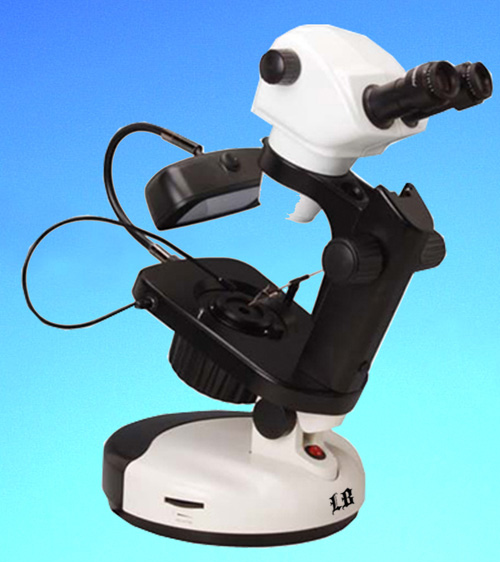

LB-860 Binocular Gemological Microscope

LB-860 Binocular Gemological Microscope is the microscope used by jewelers and gem stone experts, the gemological microscope is the most important tool in their jobs. LB-860 gemological microscope is especially designed to view precious stone samples and the pieces of jewelry that contain them. This microscope is equipped with multiple illumination systems to enhance the image of the samples.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Offering crisp sharp and high resolution image with high bright LED point light, dark field illumination and even fluorescent light source.
  • It is a high level professional gemological microscope.
  • Designing with very good idea can greatly improve the working efficiency, it is also easy to operate and makes operators feel more comfortable.

Top of the Page

Technical Specifications

Applications

LB-860 Binocular Gemological Microscope is usually used to inspect the authenticity of gemstones and in the design, creation, and repair of jewelry. LB-860 gemological microscope is a precision microscope that are capable of inspecting diamonds, emeralds, rubies, and all other types of precious stones.

Stereo Zoom Body

Zoom ratio 0.8×-5×, zoom ratio 1:6.3, working distance 115mm

Eyepiece

Extra wide field eyepiece WF15×/16 with diopter adjustment

Bright & Dark Field Illumination

Iris diaphragm 2mm-41mm, Bright and dark viewing field illumination are adjustable

Illumination

7W Fluorescent lamp

LED Point Light

6V/20W Halogen illumination, lamp can be changed

Focusing

Focusing range: 100mm, it is suitable for observing different size gems and samples

Gem Clamp

High quality steel clamp is perfect to hold the gem for observation from all directions

Stage

At both side, there are two gem clamp fixing holds for you to choose

Stand

0-38°Rotatable, so the height and angle of eyepiece can be adjusted, easy to operate

Base

0-325° Rotatable

Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
