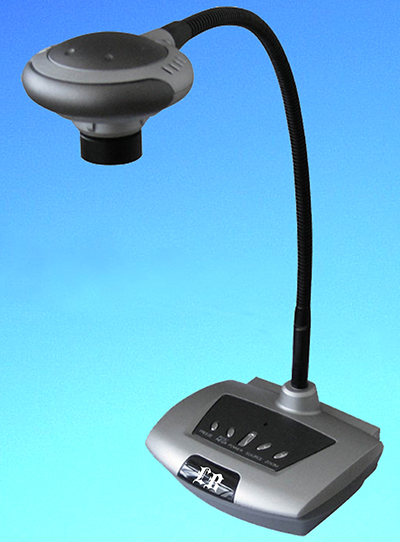

LB-91 HD Presentation Microscope

LB-91 HD Presentation Microscope

With the LB-91 HD Presentation Microscope, users can view high resolution images on your computer monitor, and also project them onto a large screen.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Innovative Gooseneck Design allows the microscope head to move from any angle.

  • Exceptional image quality.

  • With light weight and small size, easy for carrying.

  • Capture and save 20 images.

  • Multi output port can be chosen.

  • A carrying bag comes with the microscope.



Top of the Page

Technical Specifications

Optics

Microscope Head

6mm

Digital Zoom

≥13×

Focus

Manual

Lens

F1.6

Image Sensor

1/3'' CMOS Image Sensor

Image System

Total Effective Pixels

1.3MP

Resolution

≥750 TV line

Television Standard

PAL/NTSC Color System

SNR

≥50dB

White Balance

Auto

Multi-functions

Color/BW, Negative, Rotate, Mirror, Text/Graphic, Split screen, Freeze, Brightness Control, Image capture and storage

Input Port

VGA Port

RGB×1(matrix switch)

Output Port

AV Port

CVBS(Video) × 1

VGA Port

RGB×1

USB

USB×1(Optional)

Output Format

PAL/N Format

2:1 line-to-line scan

VGA line-to-line Scan

1280×1024, 1024×768

Control Modes

Control Panel, Remote Controller

Goose Neck

360˚×180˚ memory free surgical flexible neck

Usage Environment

Power Supply

DC 12V 1.5A

Energy Consumption

≤15W (Energy Saving)

Temperature

0℃~40℃

Pack

275mm×220nn×195 mm,1.5kg

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
