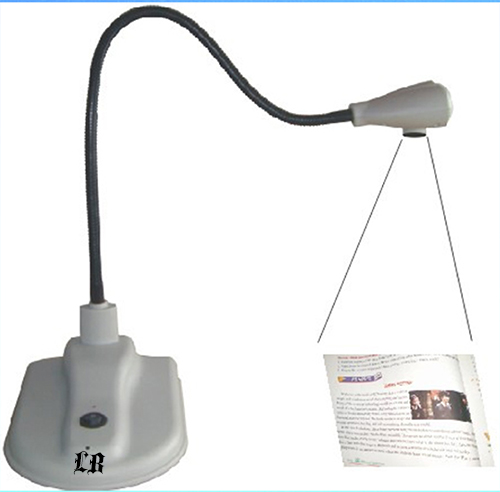

LB-90 HD Presentation Microscope

LB-90 HD Presentation Microscope With the LB-90 presentation microscope, users can view high resolution images on your computer monitor, and also project them onto a large screen. LB-90 presentation microscope provides images via a USB 2.0 cable that plugs into your computer. Instantly you have the ability to view, capture, annotate, create movies, and share images. Simply connect the USB cable to PC and you're in operation. No other connection is required, the microscope is also powered by the USB cable. The Microscope provides High Definition full color images of 1600х1200 resolution.

With its long flexible 20" neck and rugged sturdy base, the microscope can be easily positioned to view a variety of objects. For rapid image positioning, the head also rotates in all directions. Special Applied Vision software for the PC is provided on the CD. Capture and display scenes in the classroom. Look at graphics, laboratory experiments, test images, groups of images or other objects with this amazing microscope.



Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Innovative Gooseneck Design.
  • Exceptional image quality.
  • High resolution 1600х1200.
  • Long 20-inch flexible neck.
  • Simple USB 2.0 connection to PC.
  • Low light level operation.
  • User friendly software to capture and share images.
  • Extremely easy to use, point and focus.
  • Microscope adapter is optional.
  • Come with software for viewing, image capture or movie recording.


Top of the Page

Technical Specifications



Sensor

1/3 inch 2.0MP CMOS Color sensor, 1600 х 1200

Frame Rate

12fps@1600 х 1200

Working distance

Lens f=8.0 mm, manual focus

Magnification

1х-8х

Output

USB2.0

Power Supply

USB cable

Power Consumption

0.9W

Operation System

Vista, XP, 2000,WIN7

Package

Carton Size:310mmх265mmх200mm, 2.5kg

Accessories

USB cable, Software CD, Users Manual.





ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
