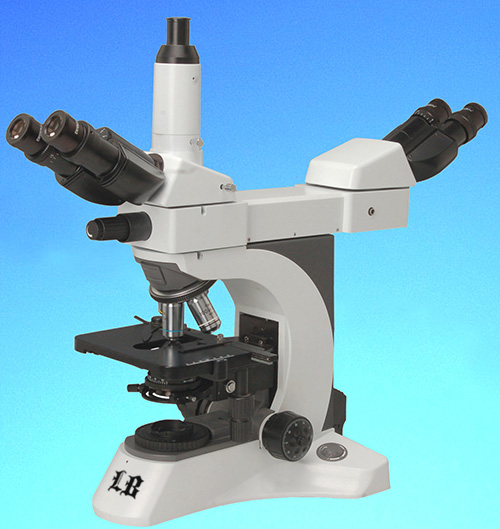

LB-983 Trinocular Multi-Head Microscope (for 2 Users) with Infinite Optical System, Extra Wide Field, Backward Quintuple Nosepiece, Kohler and Halogen Illumination
(Anti-Fungus)

LB-983 Multi-Head Microscopes (for 2 users) with Infinite Plan Optical System (Infinity Color Corrected System), Extra Wide Field, Backward Quintuple Nosepiece, Kohler and Halogen Illumination is a high level microscope for 2 persons observing at the same time. The optical system is high quality and reliable.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

  • Sharp image display with excellent optical system.
  • Small space occupancy with integral stand design, low environment requirement with anti-mould technology.
  • Users friendly and comfortable operation with ergonomic design.
  • Digital cameras can be added to the trinocular head for image, video capture, analyze and share.

Top of the Page

Technical Specifications

Applications

LB-983 Multi-Head Microscopes (for 2 users) with Infinite Optical System, Extra Wide Field, Backward Quintuple Nosepiece, Kohler and Halogen Illumination mainly used in medical teaching and biological teaching. It also can be used for biological analysis for more experts at the same time. They can be widely used in medical and sanitary establishments, clinics, laboratories, institutes, colleges and universities.

Optical System

Infinite Optical System



Viewing Head

Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

1PC

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

1PCS

Eyepiece

Extra Wide Field Eyepiece EW10×/ 20

4PCS

Nosepiece

Backward Quintuple Nosepiece



Objective

Infinite Plan Achromatic Objective 4×、10×、40×、100×



Condenser

Swing Condenser N.A.0.9/ 0.25



Focusing

Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm



Stage

Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm



Kohler Illumination

External Illumination, Halogen Lamp 12V/ 100W



Pointer

Green LED Pointer, Brightness Adjustable
Dual Color LED Pointer, Brightness Adjustable (optional)



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
