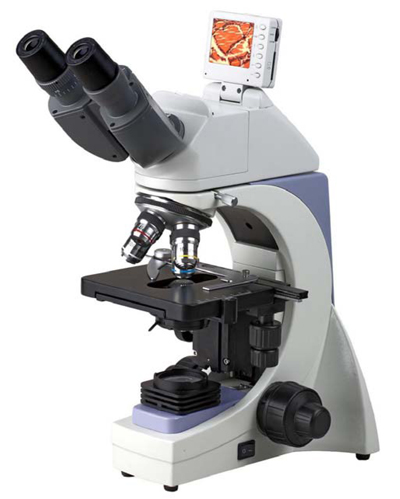

LB-250 Digital LCD Biological Microscope

LB-250 Digital LCD Biological Microscopes integrate traditional optics and digital technology. A 3.0MP digital camera is built in the head of the microscope, users can observe image on LCD screen and ocular at the same time. It support USB, AV, S-Video and Audio output and display real-time image on TV and PC at the same time. These microscopes make the observation more comfortable and resolve the fatigue caused by using a traditional microscope for a long time.
These microscopes integrate magnification, digital enlarge, imaging display, capture photo and video, store captured photos and videos on the optional SD card. Users can transfer images and videos to PC via included USB cable.

Labomed, Inc. is certified by ISO 9001-2013, has CE Conformity and is FDA Licensed.


Features

  • Varity observation mode: Observe image on LCD screen and ocular at the same time
  • Support USB, AV, S-Video and Audio output and display real-time image on TV and PC at the same time.
  • 2.5” TFT LCD screen with 4× digital zooming, rotatable at maximum 100°elevation angle and 180°pivoting.
  • Built-in 3M pixel digital camera facilitates capturing images, video and audio with no messy wires or power cords.
  • Expandable to Max 1G SD Card slot for more storage capacity.
  • Support Windows 2000/XP/Vista and equipped with powerful image processing software.
  • Integrated traditional optics and digital technology.

Top of the Page

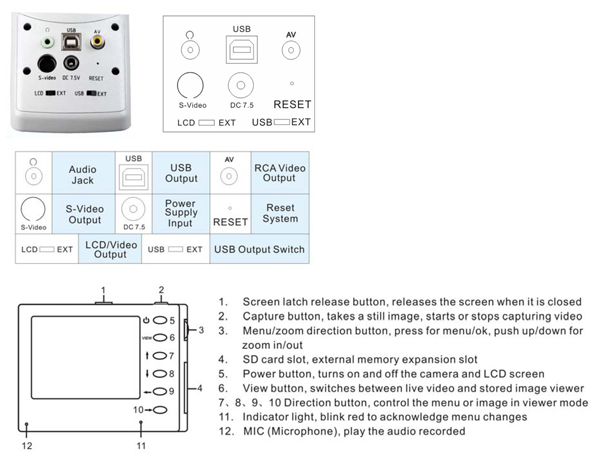

Functions



Technical Specifications

Applications

LB-250 LCD microscopes are widely used in teaching, medical, biological and scientific research fields.

Model

LB-250A

LB-250B











Optical

Part



Eyepiece

Wide Field Eyepiece WF10×/18

Wide Field Eyepiece EW10×/20









Objective

Semi-Plan Achromatic Objective 4×, 10×, 40×, 100×



Plan Achromatic Objective 4×, 10×, 40×, 100×





Infinite Semi-Plan Achromatic Objective 4×, 10×, 40×,

100×





Infinite Plan Achromatic Objective 4×, 10×, 40×, 100×





Condenser

Abbe NA1.25 Condenser with Iris Diaphragm and Filter

Stage

Double Layers Mechanical Stage 140×140mm/75×50m



Nosepiece

Quadruple Nosepiece

Inverse Quadruple Nosepiece







Illumination

6V/ 20W Halogen Lamp Illumination, Adjustable

Brightness





LED Illumination, Adjustable Brightness





Digital

Head



LCD

2.5” Color TFT LCD display, 100°maximum elevation

angle, pivoting LCD screen





Output

USB, AV, S-Video and Audio are available

Image sensor

3.0 Megapixels CMOS sensor



Dimensions
