LC-39 - 5.1MP USB2.0 CMOS Microscope Digital Camera
LC-39 - 5.1MP USB2.0 CMOS Microscope Digital Camera adopt ultra-high performance CMOS sensor as the image-capture device. USB2.0 is used as the data transfer interface.
LC-39 - 5.1MP USB2.0 CMOS Microscope Digital Cameras’ hardware resolutions ranges from 2.1MP to 12MP and come with the zinc aluminum alloy compact housing.
LC-39 - 5.1MP USB2.0 CMOS Microscope Digital Camera come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The LC-39 - 5.1MP USB2.0 CMOS Microscope Digital Camera can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
The basic features of LC-39 cameras are as follows:
1. Standard C-Mount camera with Sony or OnSemi CMOS sensor;
2. With hardware 5.1MP;
3. USB2.0 interface ensuring high speed data transmission;
4. Integrated with large capacity memory chip ensures data synchronous transmission, low latency, high frame rate and stability;
5. Compatible with Microsoft USB Video Class protocol and support the third-party software development;
6. Built in Ultra-fine hardware ISP engine ensures high color restoration;
(1) Support automatic/manual exposure switching, accurate exposure time control, and real-time adjustment of exposure target area;
(2) Support automatic/manual/ROI white balance;
(3) Support color adjustment/color mode selection/image flipping;
(4) Support histogram adjust/flat field correction/dark field correction/video ROI;
7. High performance MJPEG compression algorithm, combined with the unique decoding method of image restoration algorithm ensure highest frame rate of USB2.0 camera in the industry. The FPS for 5MP can be up to 25FPS;
8. Comply with CE and FCC agreements;
9. CNC aluminum alloy housing;
10. With advanced video & image processing application ImageView;
11. Providing Windows/Linux/Mac OS multiple platforms SDK;
12. Very competitive pricing.
| Model | LC-39 |
| Sensor & Size(mm) | 5.1M/IMX335(C) 1/2.8“ (5.18x3.89) |
| Pixel(μm) | 2.0x2.0 |
| G Responsivity | 505mV |
| Dynamic range | 70dB |
| SNRmax | 43dB |
| FPS/Resolution | 25@2592x1944 25@1280x960 25@640x480 |
| Binning | 1x1 1x1 1x1 |
| Exposure | 0.1-2000 ms |
| Other Specification for LC-39 | |
| Spectral Range | 380-650nm (with IR-cut Filter) |
| White Balance | Auto/Manual/ROI White Balance/Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
| Color Technique | Ultra-fine hardware ISP engine /NA for Monochromatic Sensor |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
| Operating Environment | |
| Operating Temperature (in Centidegree) | -10~ 50 |
| Storage Temperature (in Centidegree) | -20~ 60 |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| Software Environment | |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) |
| OSx(Mac OS X) | |
| Linux | |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory:2GB or More | |

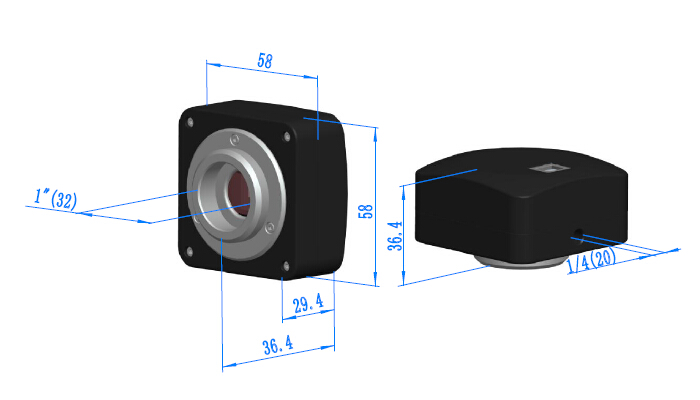

The LC-39 - 5.1MP USB2.0 CMOS Microscope Digital Camera body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
| Standard Camera Packing List | |||
| A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | ||
| B | Gift box L:15cm W:15cm H:10cm (0.5~0.55Kg/ box) | ||
| C | LC-39 USB2.0 C-mount CMOS camera | ||
| D | High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m | ||
| E | CD (Driver & utilities software, Ø12cm) | ||
| Optional Accessory | |||
| F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube | 108001/AMA037 |
| (Please choose 1 of them for your microscope) | 108002/AMA050 | ||
| 108003/AMA075 | |||
| C-mount to Dia.31.75mm eyepiece tube | 108008/ATA037 | ||
| (Please choose 1 of them for your telescope) | 108009/ATA050 | ||
| 108010/ATA075 | |||
| G | Fixed lens Adapter | C-mount to Dia.23.2mm eyepiece tube | 108005/FMA037 |
| (Please choose 1 of them for your microscope) | 108006/FMA050 | ||
| 108007/FMA075 | |||
| C-mount to Dia.31.75mm eyepiece tube | 108011/FTA037 | ||
| (Please choose 1 of them for your telescope) | 108012/FTA050 | ||
| 108013/FTA075 | |||
| Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , Our engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
| H | 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube | ||
| I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube | ||
| J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube | ||
| K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); | |
| 106012/TS-M2(X,Y=0.01mm/100Div.); | |||
| 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) | |||

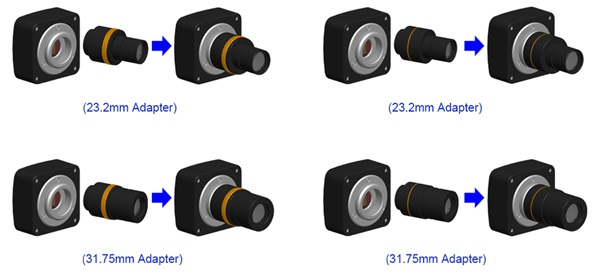

| Extension | Picture | |
| C-mount Camera |  |
Machine vision; Medical imaging; |
| Semiconductor equipment; Test instruments; | ||
| Document scanners; 2D barcode readers; | ||
| Web camera and security video; | ||
| Microscope imaging; | ||
| Microscope Camera |  |
|
| Telescope Camera | ||
