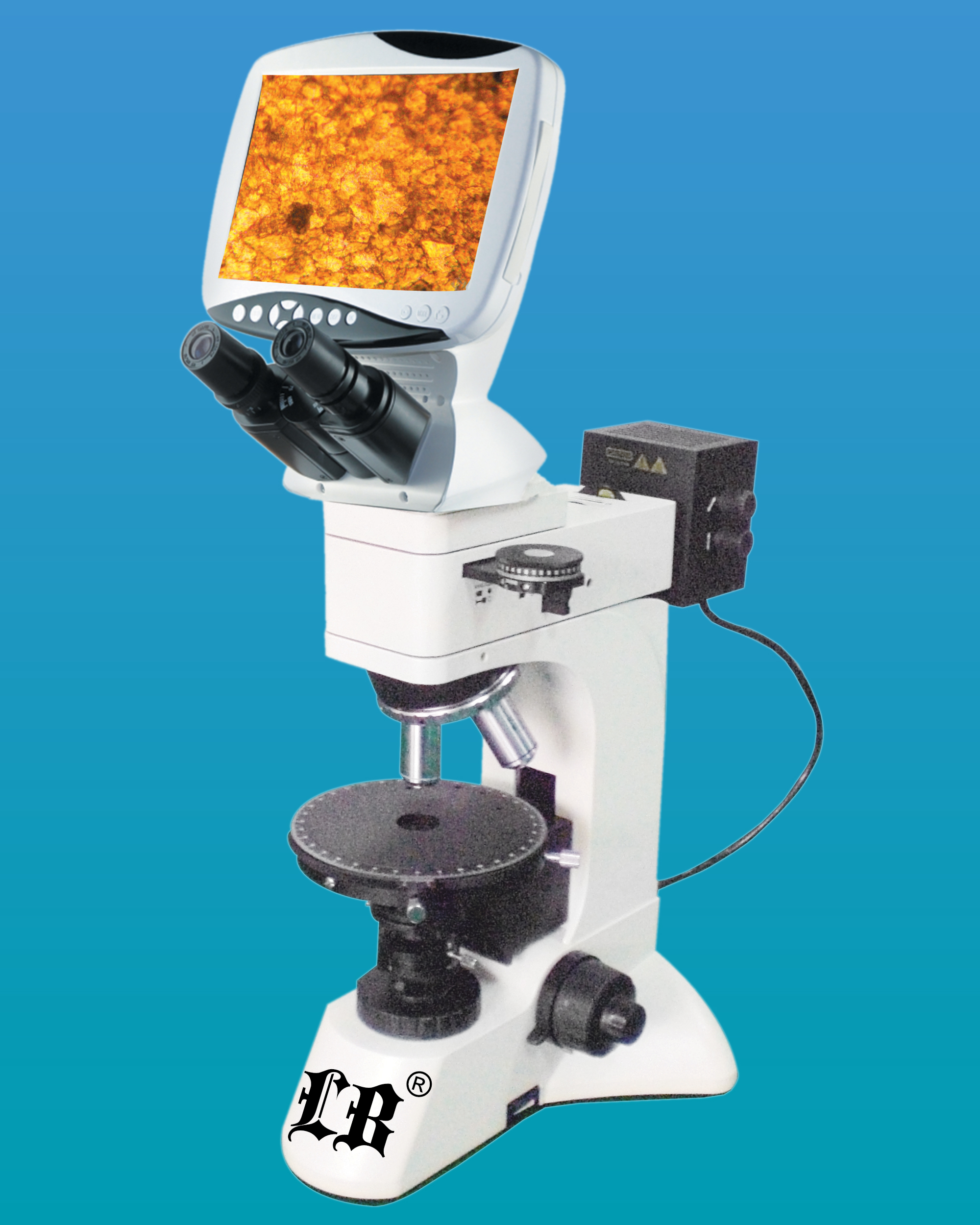

LB-1500 Digital LCD Polarizing Microscope with Infinity Optical System (12.0MP)

LB-1500 Digital LCD Polarizing Microscopes with Infinity Optical System (12.0MP) adopt a polarizing light to observe and research objects which have double refraction features, users can make single polarizing observation, orthogonal observation, conoscope observation. It has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging. Eyepieces and an LCD screen can both be used for easy and comfortable viewing for yourself and to share with others.

This patented microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope at work for a long time. It not only features high resolution of LCD display to generate genuine photo and video, but also features for quick and easy snapshots or short videos. This product integrates magnification, digital enlarge, imaging, display, capture photo and video and printing for easy exchange, store captured photos and clips on the optional SD card or transfer them to your personal computer via included USB cable.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • Adopts a polarizing light to observe and research objects which have double refraction features.
  • The 12.0MP high resolution camera has real time imaging display and video recording function.
  • With a high definition 9� LCD screen.
  • 12VDC power supply safety and reliability of low voltage (Input Voltage 90-240V).
  • HDMI interface for connecting to other LCD monitor or projector via HDMI cable.
  • 4G SD Card for image, video storage and printing.

Top of the Page

Technical Specifications

Applications

LB-1500 Digital LCD Polarizing Microscopes with Infinity Optical System (12.0MP) is mainly used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. It is widely applied in mineralogy, biology, chemistry, botany, plant pathology, zoology and other fields. It is the ideal instrument for scientific research and universities teaching and study.

Digital parts

Resolution

12 Mega Pixel

Image Resolution

12 Mega Pixel

Video Resolution

640×480

Sensor Size

1/2.5 Inches

LCD Screen

8 Inches TFT Screen, Resolution is 800×600

Video Output

AV Output (NTSC/PAL are optional)

Data Output

USB2.0

Menu Language

/ English

Storage

SD Card (Maximal Storage Capacity is 4G)

Scene Mode

Standard / Softness / Vivid

Exposure Mode

Auto Exposure

Date Mode

Year, Month, Day, Hour, Minute

Optical Parts

Viewing Head

Seidentopf Binocular Head Inclined 30˚

Eyepiece

Wide Field Plan Eyepieces  WF10×(Ф22mm.)

Dividing Eyepiece(field number: Ф22mm) 0.10mm/Div

Objective

Strain-free Infinity Long W.D Plan Achromatic Objective (No Cover Glass)

PL L5×/0.12, Work Distance: 26.1 mm

PL L10×/0.25, Work Distance: 20.2 mm

PL L40×/0.60(spring), Work Distance: 3.98 mm

PL L60×/0.70(spring), Work Distance: 3.18 mm

Polarizing Unit

Polarizing Unit Can Be Move Out or Into Optical Path

Polarizer Can Be Rotated 360°

Analyzer Can Be Rotatable 360° with Scale and Minimum Vernier

Integrated Field and Aperture Diaphragm.

Nosepiece

Quadruple (The Center of Objective is Adjustable )

Intermediate Attachment

Puller Type Bertrand Lens and Center Adjustable.

Compensator

λ, λ/4 and Quartz Wedge Compensator.

Illumination

6V30W Halogen, Brightness Adjustable.
Wide Voltage Range Power Supply (85-265V 50/60Hz)

Focusing System

Coaxial Coarse/Fine Focus with Tension Adjustable and up Stop Device, Minimum Division of Fine Focusing: 2μm.

Optional Parts
(must be ordered separately)

Objectives

Strain-free Plan Achromatic Objective (No Cover Glass)

PL L 20×/0.40, Work Distance: 8.80mm

PL L50×/0.70(Spring), Work Distance: 3.68 mm

PL L80×/0.80(spring), Work Distance: 1.25 mm

PL L100×/0.85(spring), Work Distance: 0.4 mm

Nosepiece

Quintuple(Backward Ball Bearing Inner Locating)

Slide Moving Holder

Moving Range: 30mmX25mm

Sample Images



ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
