Labomed Inc.

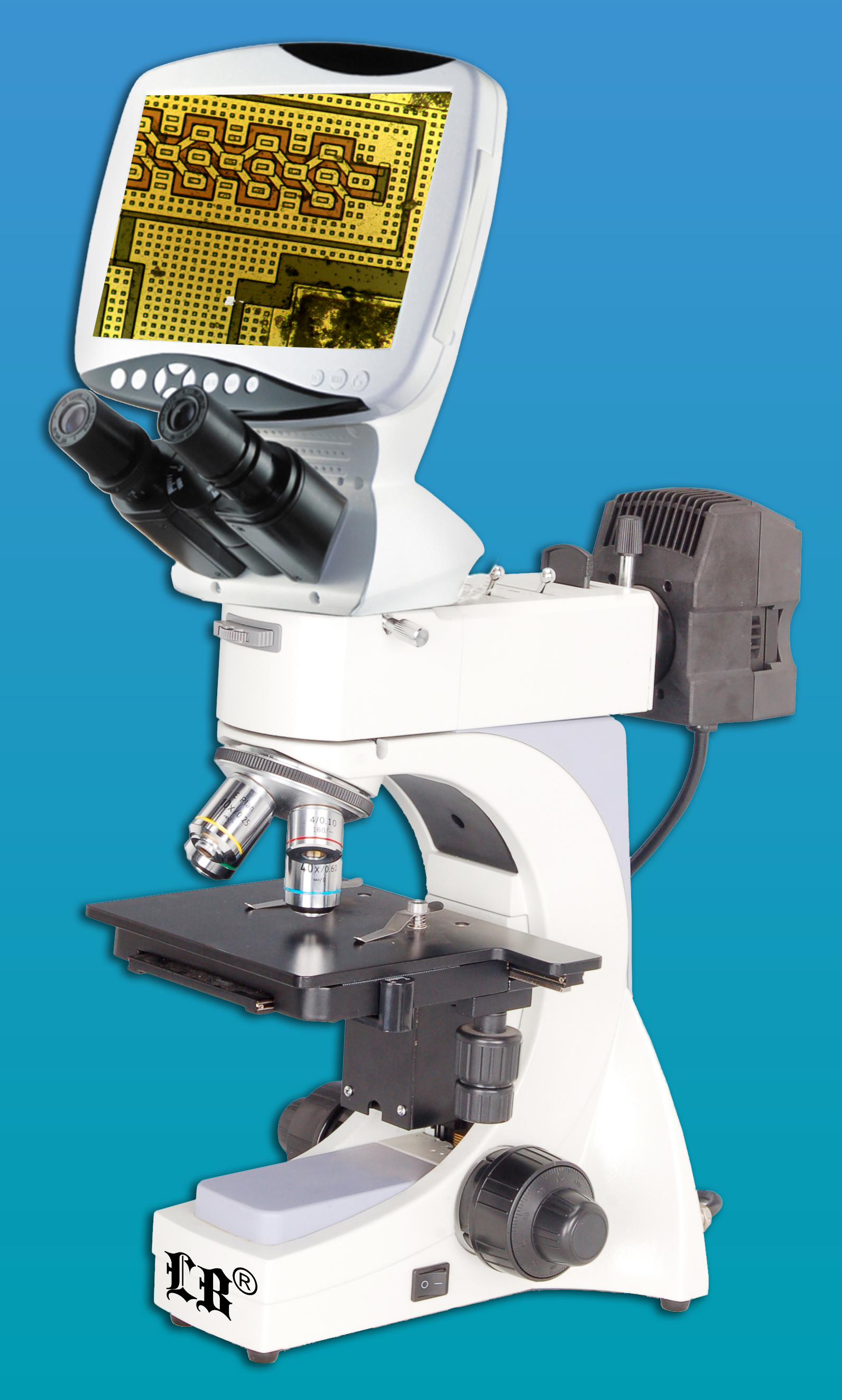

LB-1600 Compound Digital LCD Metallurgical Microscope with Infinity Optical System (5.0MP)

LB-1600 Compound Digital LCD Metallurgical Microscope with Wide Field and Infinity Plan Optical System (Infinity Color Corrected System) (5.0MP) renovated the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working. It combines an 8 inch LCD screen and a metallurgical microscope to generate genuine photos and videos. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing by individuals and share with groups alike. It is also feature the latest 5 Megapixel digital imaging microscopy techniques for quick and easy snapshots or videos.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.

Features

  • Special designed metallurgical analysis optical system and an 9” LCD screen, images and videos can be share with other people.
  • 5Megapixel high resolution camera with real time imaging display and video recording function.
  • With a high definition 9” LCD screen.
  • 12VDC power supply safety and reliability of low voltage (Input Voltage 90-240V).
  • USB Cable for Transferring Images to a PC.
  • SD Card slot for storage, archiving and printing, optional memory cards (Maximal Storage Capacity is 4G).

Top of the Page

Technical Specifications

Applications

With the specially designed metallurgical analysis optical system, LB-1600 Compound Digital LCD Metallurgical Microscopes with Infinity Optical System (5.0MP) also features of easy observation, intelligence and convenient operation, powerful functions and economy, it is widely used for PCB board, LCD display and metal structure observation and inspection.

Digital Parts

Resolution

5Megapixel

Photo Resolution

12MP

Video Resolution

1080P/30fps

Sensor Size

1/2.5 Inches

LCD Screen

9 Inches TFT Screen, Resolution is 1280x800

Video Output

AV Output (NTSC/PAL)

Data Output

USB2.0

Menu Language

English

Storage

SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)

Scene Mode

Standard / Softness / Vivid

Exposure Mode

Auto Exposure

Date Mode

Year, Month, Day, Hour, Minute

Optical Parts

Viewing Head

Compensation Free Binocular Head, 30° Inclined , Interpupillary Distance 55-75mm

Eyepiece

Wide Field Eyepiece WF10X/18

Objective

Infinity Plan Achromatic

4×/0.1/∞/- WD25.4mm

10×/0.25/∞/- WD11.0mm

20×/0.40/∞/- WD6.0mm







40×/0.60/∞/0 WD3.7mm

Nosepiece

Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 150mmX140mm / 75mmX50mm

Focusing System

Coaxial Coarse/Fine Focus System

Illumination

Kohler Illumination, Epi-illuminator with Iris Aperture Diaphragm and Iris Field Diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable

Filters

Blue, Green, Yellow & Ground Glass


Optional Parts (must be ordered separately)


Eyepiece


WF8×/18

WF10×/18 with 0.1mm Micrometer & Cross Hair

WF12.5×/15

Objective

Infinity Plan Achromatic

40×/0.65/∞/- WD0.78mm

50×/0.75/∞/- WD0.32mm

80×/0.90/∞/- WD0.2mm

100×/0.90/∞/0 WD0.7mm

Illumination

Diascopic Illumination, 6V/20W Halogen Lamp, Brightness Adjustable

Simple Polarization
Attachment

Polarization Set



Nosepiece

Quadruple Nosepiece

Stage

Double Layers Mechanical Stage 150mmX140mm / 75mmX50mm

Focusing System

Coaxial Coarse/Fine Focus System

Illumination

Kohler Illumination, Epi-illuminator with Iris Aperture Diaphragm and Iris Field Diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable

Filters

Blue, Green, Yellow & Ground Glass


Optional Parts (must be ordered separately)


Eyepiece


WF8×/18 with diopter adjustment

WF10×/18 with 0.1mm Micrometer & Cross Hair with diopter adjustment

WF12.5×/15 with diopter adjustment

Objective

Infinity Plan Achromatic

40×/0.65/∞/- WD0.78mm

50×/0.75/∞/- WD0.32mm

80×/0.90/∞/- WD0.2mm

100×/0.90/∞/0 WD0.7mm

Illumination

Diascopic Illumination, 6V/20W Halogen Lamp, Brightness Adjustable

Simple Polarization
Attachment

Polarization Set

Sample Images

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY

click here to fill out the Information Request Form
