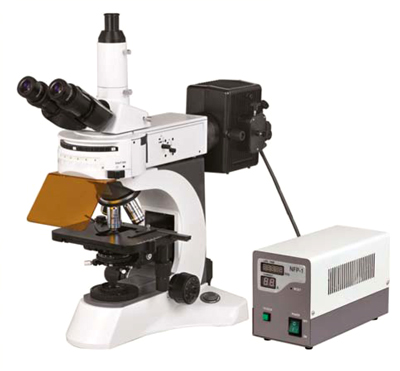

LB-700 Upright Flourescent Biological Microscope
 |
LB-700 Upright Fluorescent Biological Microscope uses ultraviolet as the light source, objects which are radiated then fluoresce, and then the shape of an object and its location can be observed under the microscope.
Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.
|
Applications
LB-700 Fluorescence microscope is used to study the absorbing, transportation, chemical distribution, and positioning in cells. It is widely used in disease examination and immune diagnosis.
Optical System |
Infinite Optical System |
|||
Viewing Head |
Compensation Free Trinocular Head Inclined at 30°，Interpupillary Distance 48-75mm |
|||
Eyepiece |
Extra Wide Field Eyepiece EW10×/22 |
|||
Nosepiece |
Backward Quintuple Nosepiece |
|||
Objective |
Objective Infinite Plan Achromatic Objective |
4× 10× |
||
40× 100× |
||||
Condenser |
Swing Condenser NA 0.9/ 0.25 |
|||
Focusing |
Coaxial Coarse & Fine Adjustment, Fine Division 0.001mm |
|||
Stage |
Double Layers Mechanical Stage 185×142/ 75×55 mm |
|||
Kohler Illumination |
External Illumination, Aspherical Collector, Halogen Lamp6V/ 30W |
|||
Reflected Light Source |
|
Excitation |
Dichroic Mirror |
Barrier Filter |
Blue excitation |
BP460~490 |
DM500 |
BA520 |
|
Green excitation |
BP510~550 |
DM570 |
BA590 |
|
Lamp |
100W HBO Ultra Hi-voltage Spherical Mercury Lamp |
|||
Protection barrier |
Barrier to Resist the Ultraviolet Light |
|||
Power Supplier |
Power Supplier NFP-1, 220V/ 110V interchangeable , Digital Display |
|||
Immersion Oil |
Fluorescent Free Oil |
|||
