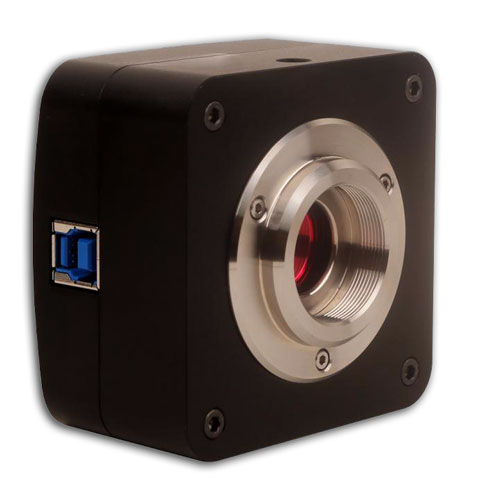

LC-17 20M/IMX183(C) 1“ (15.86mm)

USB3.0 CMOS Digital Camera (HISPVP)

LC-17 20M/IMX183(C) 1“ (15.86mm) USB3.0 CMOS Digital Camera (HISPVP) adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface.

LC-17 20M/IMX183(C) 1“ (15.86mm) USB3.0 CMOS Digital Camera (HISPVP) hardware resolution of 20M and come with the integrated CNC aluminum alloy compact housing.

LC-17 20M/IMX183(C) 1“ (15.86mm) USB3.0 CMOS Digital Camera (HISPVP) integrated with 12 bit Ultra-fineTM Hardware Image Signal Processor Video Pipline(Ultra-fineTM HISPVP) for Demosaic, Adjustments, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit out. This will move the heavy burden of the processing from the PC to the Ultra-fineTM HISPVP and greatly accelerating the processing speed.

LC-17 20M/IMX183(C) 1“ (15.86mm) USB3.0 CMOS Digital Camera (HISPVP) with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

Labomed, Inc. is certified by ISO 9001, has CE Conformity and is FDA Licensed.

Features

The basic characteristic of LC-17 20M/IMX183(C) 1“ (15.86mm) USB3.0 CMOS Digital Camera (HISPVP) are as follows:
1. SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface;
2. Real-time 8/12bit depth switch(depending on sensor);
3. Super high sensitivity of 462mV(IMX183);
4. Ultra low noise and low power dissipation by using column-parallel A/D conversion;
5. With hardware resolution of 20M;
6. Rolling Shutter or Global Shutter;
7. Standard C-Mount camera;
8. CNC aluminum alloy housing;
9. Ultra-fineTM HISPVP and USB3.0 5 Gbps interface ensuring high frame rates(Up to 15 frames for 20M Resolution);
10. With advanced video & image processing application ImageView;
11. Providing Windows/Linux/Mac OS multiple platforms SDK;
12. Native C/C++, C#/VB.Net, DirectShow, Twain, LabView.

Top of the Page

Applications

The LC-17 20M/IMX183(C) 1“ (15.86mm) USB3.0 CMOS Digital Camera (HISPVP) can be widely used in bright field, dark filed, fluorescent light environment and normal microscope image capture and analysis with higher frame rate.



Technical Specifications

Model LC-17
Sensor & Size(mm) 20M/IMX183(C)
1 “(15.86mm)
Pixel Size(μm) 2.4 x2.4
G Sensitivity 462mv with 1/30s
Dark Signal 0.21mv with 1/30s
FPS/Resolution 15@5440x3648
50@2736x1824
60@1824x1216
Binning 1x1
2x2
3x3
Exposure 0.1ms~15s
Other Specification
Spectral Range 380-650nm (with IR-cut Filter)
White Balance ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color Technique Ultra-fineTM HISPVP /NA for Monochromatic Sensor
Capture/Control API Native C/C++, C# /VB.Net,, DirectShow, Twain and Labview
Recording System Still Picture and Movie
Cooling System Natural
Operating Environment
Operating Temperature(in Centidegree) -10~ 50
Storage Temperature(in Centidegree) -20~ 60
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB Port
Software Environment
Operating System Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
OSx(Mac OS X)
Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB Port: USB3.0 High-speed Port
Display: 17” or Larger
CD-ROM



Dimension

The LC-13 12M/IMX226(C) 1/1.7“ (9.33mm) USB3.0 CMOS Digital Camera (HISPVP) body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhouse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Packing Information

Standard Camera Packing List
A Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo
B Gift box L:15cm W:15cm H:10cm (0.58~0.6Kg/ box)
C LC-17 Camera
D High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m
E CD (Driver & utilities software, Ø12cm)
Optional Accessory
F Adjustable lens adapter C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)
G Fixed lens adapter C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera) , our engineer will help you to determine the right microscope camera adapter for your application.
H (Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube
I (Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
J (Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube
K Calibration kit 106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)



Sample Images
