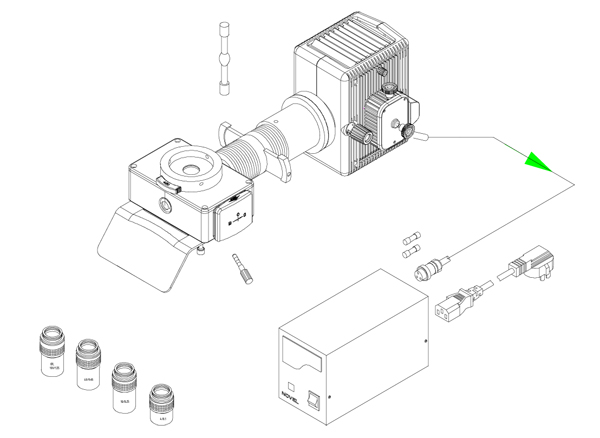

Epi-Fluorescent Attachment YX-2

The Epi-Fluorescent Attachment is designed to attach to certain Fluorescent microscopes in the Labomed product line, including the LB-233.

Labomed Inc. is certified by ISO 9001, CE Conformity and is FDA Licensed.


Features

Features

  • B and G Exciting Light Filter Systems
  • 100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
  • Protection Barrier to Resist the Ultraviolet Light
  • Power Supplier NFP-1, AC Input 220V/110V (Interchangeable), Digital Display and Timer
  • Fluorescence-Free Objectives 4x, 10x, 40x, 100x
  • Achromatic Optics System
  • Mercury Lamp Housing 100W
  • Mercury Burner GCQ100

Technical Specifications

Epi-Fluorescent Illumination

B Exciting Light Filter System
G Exciting Light Filter Systems

Illumination 100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
Protection Barrier Barrier to Resist the Ultraviolet Light
Power Power Supplier NFP-1, AC Input 220V/110V (Interchangeable), Digital Display and Timer
Objective Fluorescence-Free Objectives 4x, 10x, 40x, 100x
Immersion Oil Fluorescence-Free Oil
Vertical Illumination Achromatic Optics System
B Exciting Light Filter System
G Exciting Light Filter Systems
Mercury Lamp Housing

Mercury Lamp Housing 100W
Mercury Burner GCQ100


Top of the Page

ALL ACCESSORIES ARE OPTIONAL AND MUST BE ORDERED SEPARATELY
